SC+120 - Dimensions

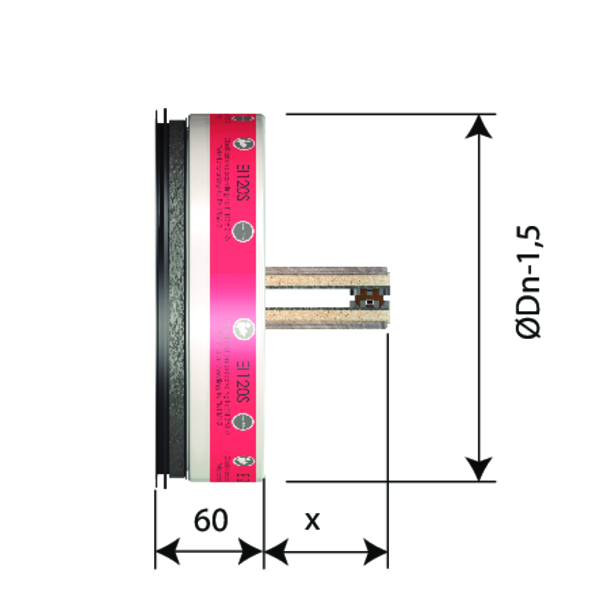

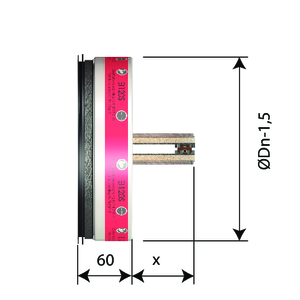

Range and dimensions

ØDn [mm]100125160200
  • Exceeding blade: X
  • Øn (mm) 100 125 150 160 200
    x (mm) SC+60 18 31 40 49 69
    x (mm) SC+90 20 33 42 51 71
    x (mm) SC+120 20 33 - 51 71



ØDn [mm]100125160200
x20335171
y----

Weights Scroll down/right to view the entire table

ØDn [mm]100125160200
kg0,30,40,50,8
