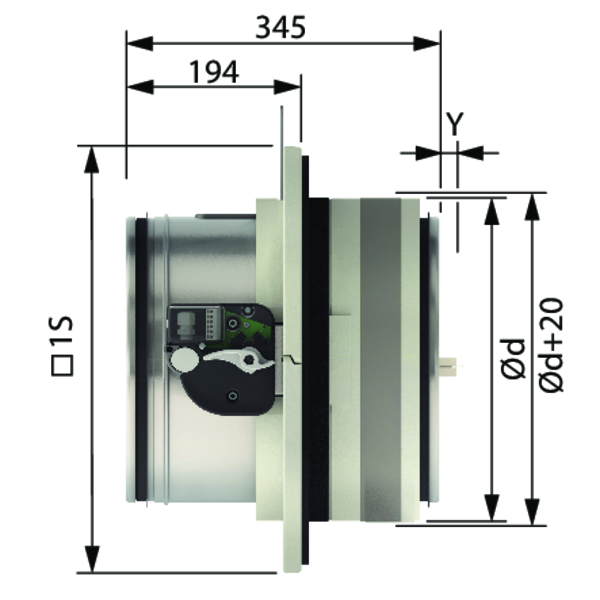

CR60-1S - Dimensions

Range and dimensions

ØDn [mm]100125160200250315
  • Exceeding damper blade: 20 mm for ØDn 315 mm
ØDn [mm]315
x-
y20
  • CR60 + ONE
  MFUS ONE (X) BFL(T)
P 72 80 63
Q 123 136 100
Z 70 75 58

Weights Scroll down/right to view the entire table

ØDn [mm]100125160200250315
kg5,66,38,19,310,812,0
