GE120 - Installation

Installation in rigid wall

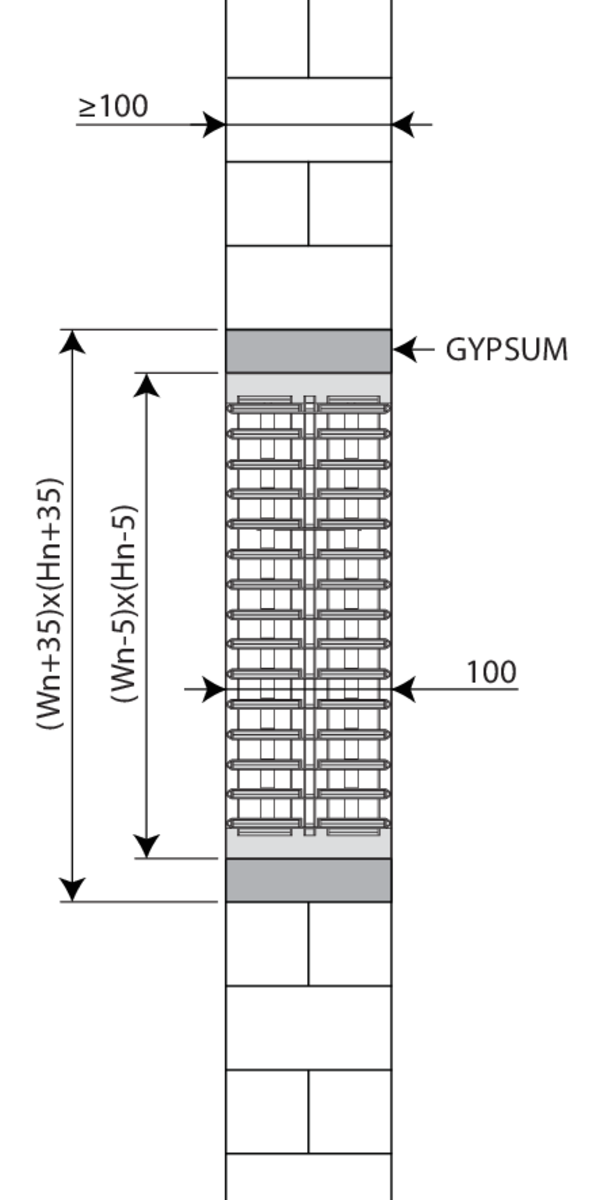

The product was tested and approved in:
  • Aerated concrete ≥ 100 mm | EI 120 (ve i o) | Gypsum / Ytocol | Type of installation: built-in, sleeves horizontal | 150x100 mm ≤ GE120 ≤ 800x400 mm
  • Aerated concrete ≥ 100 mm | EW 120 (ve i o) | Gypsum / Ytocol | Type of installation: built-in, sleeves horizontal | 150x100 mm ≤ GE120 ≤ 800x400 mm
  • Aerated concrete ≥ 100 mm | EI 180 (ve i o) | Gypsum / Ytocol | Type of installation: built-in in lower part of the wall, sleeves horizontal | 150x100 mm ≤ GE120 ≤ 800x400 mm
  • Aerated concrete ≥ 100 mm | EW 120 (ve i o) | Gypsum / Ytocol | Type of installation: built-in in lower part of the wall, sleeves horizontal | 150x100 mm ≤ GE120 ≤ 800x400 mm
1

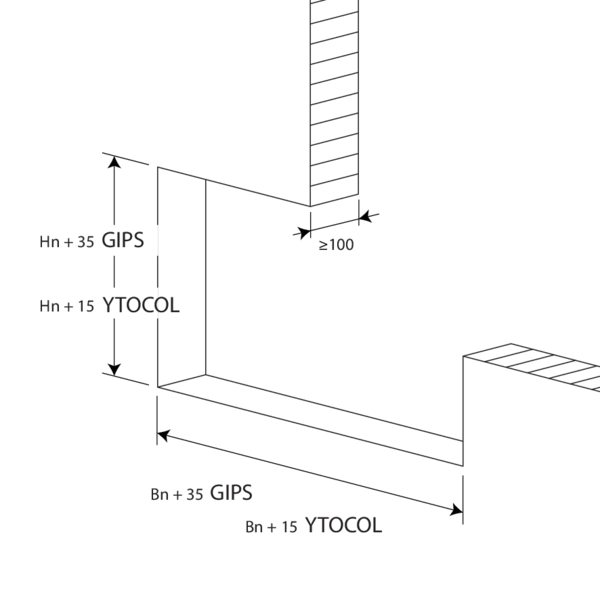

Provide a min. installation opening in the wall = Wn x Hn.
Maximum (Wn + 35) x (Hn + 35) for plaster (gypsum) and maximum (Wn + 15) x (Hn + 15) for Ytocol.
2

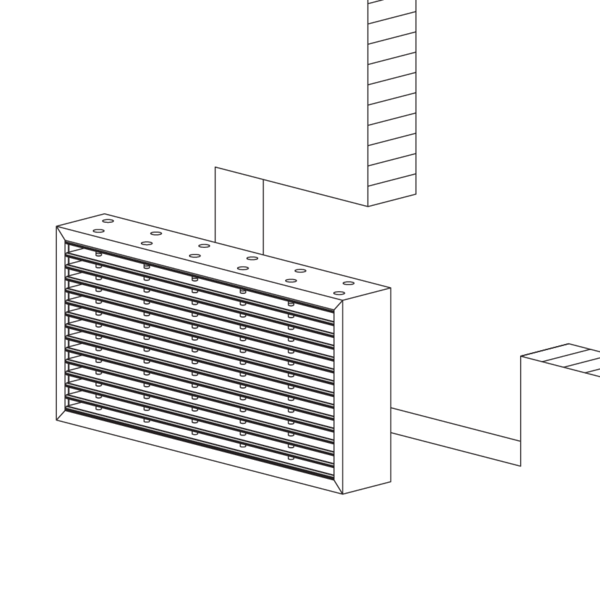

Mount the grill in the wall.
The product must be installed with the lamellas in their horizontal position.
3

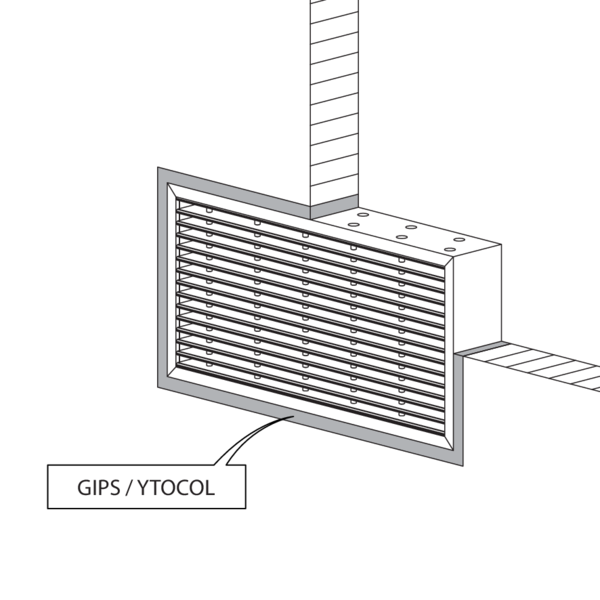

Fill the joint between the grill and the wall with plaster (gypsum) or Ytocol.

General remarks

  • The installation must comply with the installation manual and the classification report.
  • Rf-t fire resistant grills are always tested in standardised constructions according to EN 1634-1/EN 1364-1/EN 1364-2. The achieved results are valid for similar supporting constructions with a fire resistance, thickness and density equal or superior to the supporting construction used during the test.
