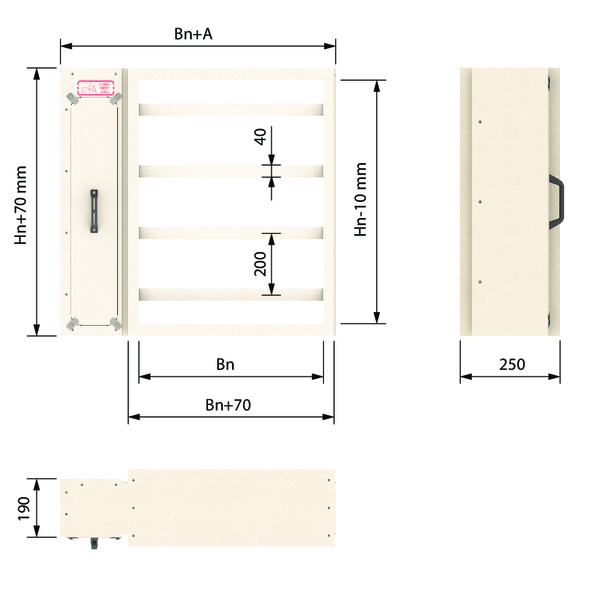

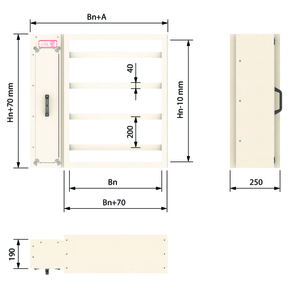

MARKAGE MB - Afmetingen

Gamma en afmetingen

≥≤
Hn\Bn [mm]200x2001200x2400
  • Hn per stap van 200 mm, Bn per stap van 50 mm.
  • Voor de afmetingen (Bn x Hn) van 200 x 200 mm tot 1200 x 2400 mm is A = 295 mm.

Gewichten Scroll naar rechts/beneden om de volledige tabel te zien

Hn\Bn [mm]20025030035040045050055060065070075080085090095010001050110011501200
200kg14,315,416,617,718,819,921,022,123,224,425,526,627,728,829,931,032,233,334,435,536,6
400kg19,620,721,822,924,125,226,327,428,529,630,731,933,034,135,236,337,438,539,740,841,9
600kg26,327,729,030,431,833,234,535,937,338,740,041,442,844,245,546,948,349,751,052,453,8
800kg33,334,936,538,239,841,443,144,746,348,049,651,252,954,556,157,859,461,062,764,365,9
1000kg39,841,743,645,547,349,251,153,054,956,858,760,662,564,466,368,270,171,973,875,777,6
1200kg46,548,650,852,955,157,359,461,663,765,968,070,272,374,576,678,880,983,185,287,489,5
1400kg53,255,658,060,462,865,367,770,172,574,977,379,782,184,587,089,491,894,296,699,0101,4
1600kg60,262,865,568,270,873,576,278,981,584,286,989,592,294,997,6100,2102,9105,6108,2110,9113,6
1800kg----79,382,285,288,191,194,096,999,9102,8105,7108,7111,7114,4115,4118,3121,2124,2
2000kg----86,990,193,396,599,8103,0106,2109,4112,6115,8119,0122,2125,4126,7129,9133,1136,3
2200kg----95,198,6102,0105,5109,0112,4115,9119,4122,8126,3129,8133,2136,7140,1143,6147,1150,5
2400kg----103,1106,8110,6114,3118,0121,7125,5129,2132,9136,6140,4144,1147,8151,5155,3159,0162,7
