CRE60 - Mechanisms

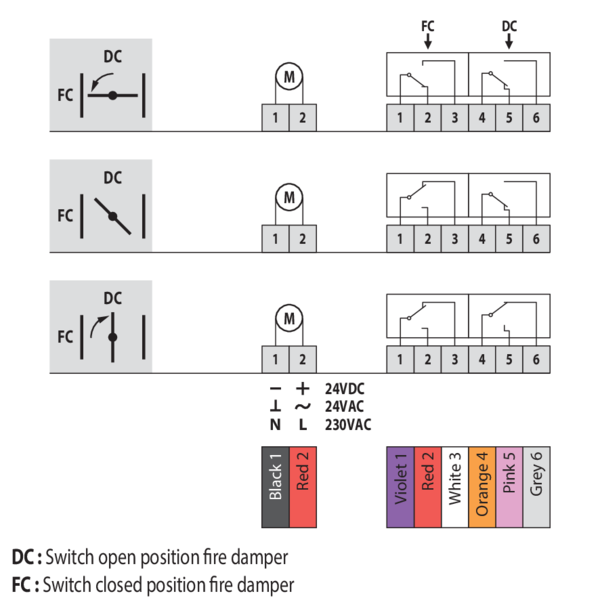

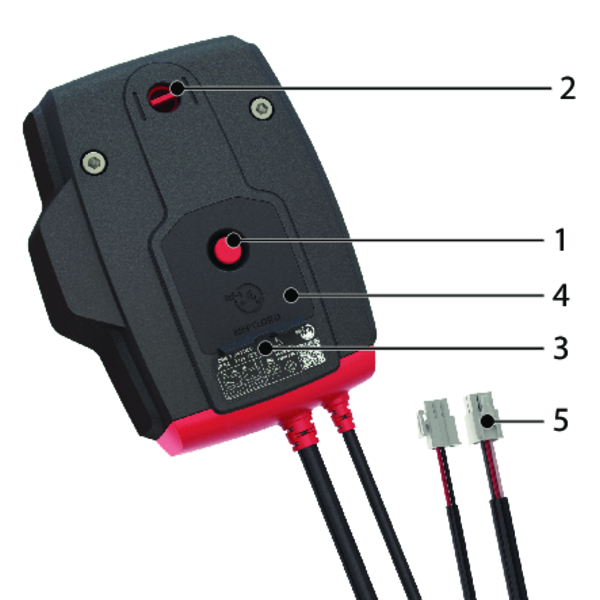

ONE - Spring return actuator for remote control
The spring-return actuator ONE is designed to easily operate Rf-t fire dampers of all sizes, automatically or remotely.
Six models are available, 24 or 230 volt, with FDCU or FDCB position switches; and optionally with plug (ST).
- Unlocking button
- Blade position indicator
- LED
- Battery compartment to reset motor
- Plug (ST)
Variants
-
ONE T 24 FDCU L
Spring return actuator ONE 24V (with fusible link) + unipolar beginning- and end-of-range switch -
ONE T 24 FDCU ST L
Spring return actuator ONE 24V (with fusible link) + unipolar beginning- and end-of-range switch and plug (ST) -
ONE T 230 FDCU L
Spring return actuator ONE 230V (with fusible link) + unipolar beginning- and end-of-range switch -
ONE T 230 FDCU ST L
Spring return actuator ONE 230V (with fusible link) + unipolar beginning- and end-of-range switch and plug (ST)
Unlocking
-
manual unlocking
shortly press the unlocking button (1) once. -
automatic unlocking
the fusible link reacts as soon as the temperature in the duct reaches 72°C. -
remote unlocking
by interrupting the power supply.
Resetting
-
manual resetting
open the battery compartment (4) and press a 9V battery against the contact springs. Hold this position until the LED (3) emits a continuous light.
Check whether the indicator (2) shows that the damper blade is in the open position.
Remove the battery, the LED fades away.
Close the battery compartment. -
motorised resetting
switch off the power supply for at least 5 sec. Power the actuator (respect the prescribed voltage) for at least 75 sec. The resetting stops automatically when the end of range is reached (damper open).

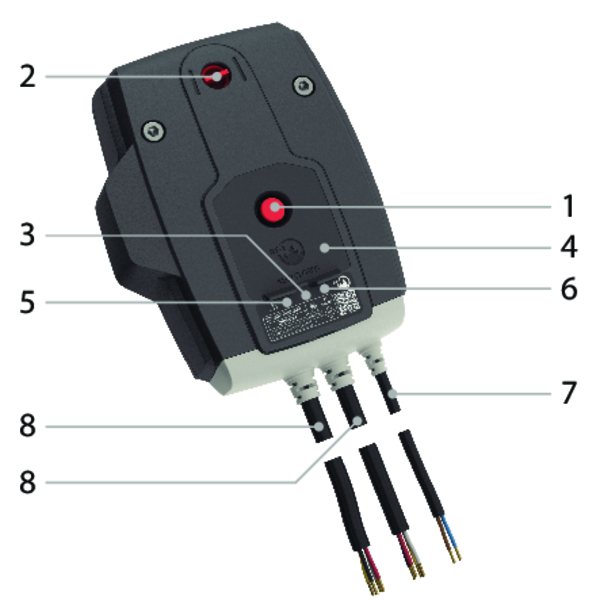

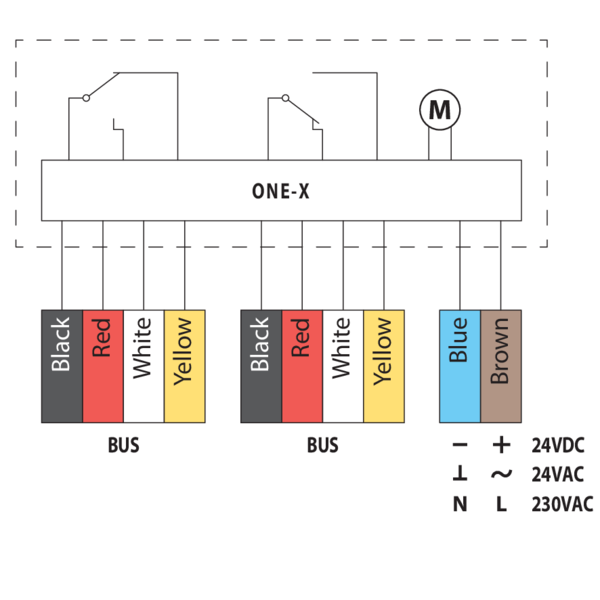

ONE-X - Spring return actuator with integrated communication module.
The ONE-X is a spring return actuator with integrated communication module designed to simply operate Rf-t fire dampers of all sizes, automatically or remotely. The ONE-X is available in two versions: 24 V and 230 V.
- Unlocking button
- Blade position indicator
- LED red: status
- Battery compartment
- LED blue: communication
- LED orange: error message
- Supply
- Bus cable
- Bus cable
Variants
-
ONE-X 24 L
Spring return actuator ONE-X 24V (with extended fusible link T) with integrated communication module -
ONE-X 230 L
Spring return actuator ONE-X 230V (with extended fusible link T) with integrated communication module
Unlocking
-
manual unlocking
shortly press the unlocking button (1) once. -
automatic unlocking
the fusible link reacts as soon as the temperature in the duct reaches 72°C. -
remote unlocking
via ZENiX controller
Resetting
-
manual resetting
Open the battery compartment (4) and press a 9V battery against the contact springs. Hold this position until the red LED (3) emits a continuous light. Control whether the indicator (2) indicates that the damper blade is open. Remove the battery. Close the battery compartment. -
motorised resetting
via ZENiX controller. By applying voltage during first use.

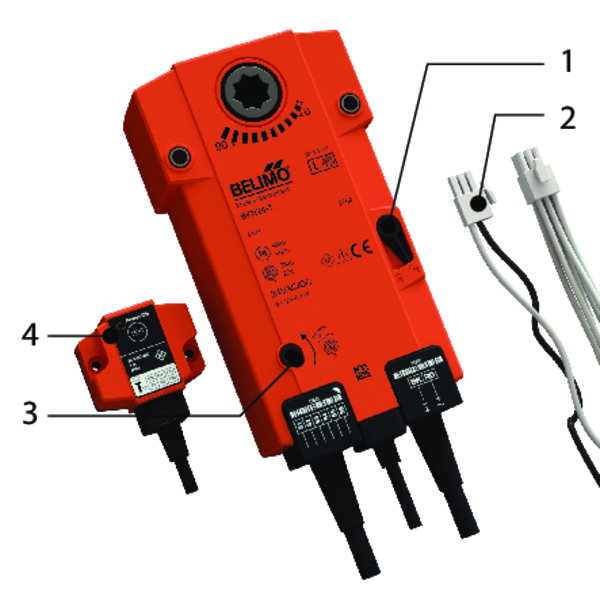

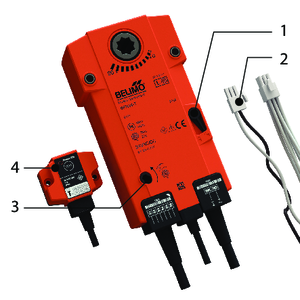

BFN(T) - Remotely controlled spring return actuator
The spring return actuator BFN(T) is especially designed to operate fire dampers remotely. The BFN(T) variant is intended for fire dampers with large dimensions (CRE60, CR2 with ø > 400 mm, CRS60 with ø > 315 mm or CU2, CU2-15, CU4 with B+H > 1200 mm. For Markage FD with H of 400 and 600 mm or with H = 1200 mm (2 pcs) and with H = 2400 mm (in combination with BFT motor).
- Locking button
- Plug (ST)
- Access for manual resetting
- Thermo-electric tripping device (T)
Variants
-
BFNT24
Spring return actuator BFN 24 V with thermo-electric fuse (T) -
BFNT24-ST
Spring return actuator BFN 24 V with thermo-electric fuse (T) and plug (ST) -
BFNT230
Spring return actuator BFN 230 V with thermo-electric fuse (T) -
BFNT230-ST
Spring return actuator BFN 230 V with thermo-electric fuse (T)
Options - Switch
-
SN2 BFL/BFN
Auxiliary limit switch 'open/closed'
Unlocking
-
manual unlocking
place the locking button on “unlock”. (In case of BFNT: the damper can alternatively be unlocked by pushing the “test” button on the thermo-electric fuse) -
automatic unlocking
the thermo-electric fuse reacts as soon as the temperature reaches 72°C (type BFNT). -
remote unlocking
by interrupting the power supply.
Resetting
-
manual resetting
turn the enclosed handle anti-clockwise. To block the motor, place the locking button on “lock” -
motorised resetting
switch off the power supply for at least 10 seconds. Supply the actuator (respect the prescribed voltage) for at least 75 seconds. The resetting stops automatically when the end of range is reached (damper open) - it takes about 60 seconds to reset the damper - or when the power supply is interrupted.

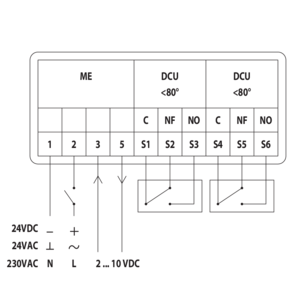

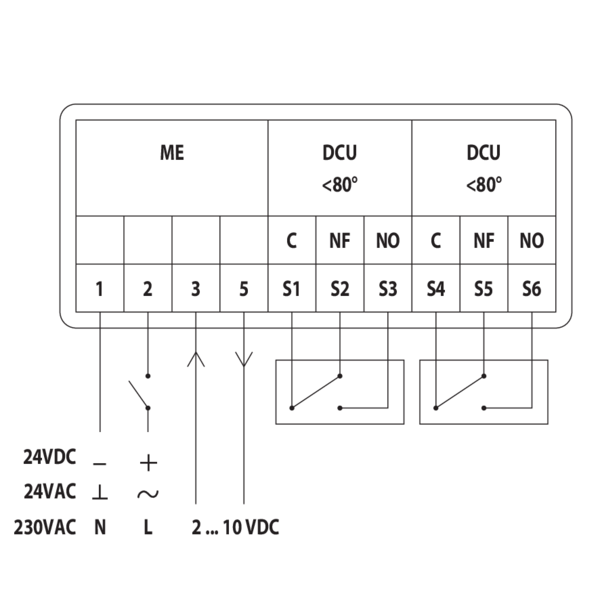

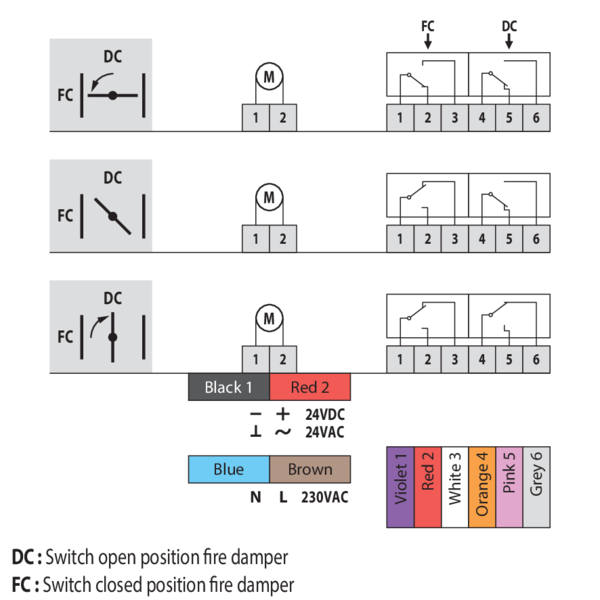

_electrical wiring.png)

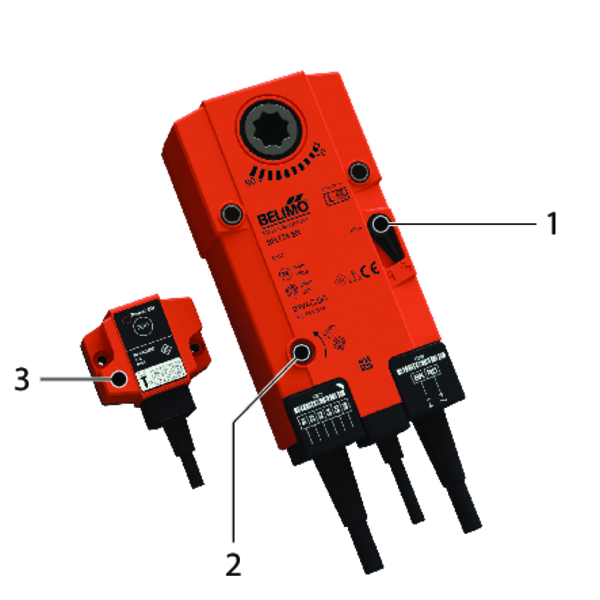

BFNT-SR - Remote-controlled spring return actuator with modulating function
The spring return actuator BFNT24-SR is designed to operate fire dampers remotely. The position of the damper blade is adjustable by means of a 0 to 10V connection. Available for: CRE60 and CRS60 (CRS60 ø ≥ 400 mm).
- Locking button
- Access for manual resetting
- Thermo-electric tripping device (T)
Variants
-
BFNT24-SR
Stepping motor BFN 24V with thermo-electric fuse for the control of the airflow
Unlocking
-
manual unlocking
place the locking button on “unlock”. The damper can alternatively be unlocked by pushing the “test” button on the thermo-electric fuse. -
automatic unlocking
the thermo-electric fuse reacts as soon as the temperature reaches 72°C. -
remote unlocking
by interrupting the power supply.
Resetting
-
manual resetting
turn the enclosed handle anti-clockwise. To block the motor, place the locking button on “lock” -
motorised resetting
switch off the power supply for at least 10 sec. Supply the actuator (line 1 and line 2; respect the indicated voltage) for min 75 sec. Apply a control voltage between 0 V and 10 V to line 3 and line 1 (0 V = closed, 10 V = fully open; respect the indicated voltage). The movement of the motor stops automatically on reaching the entered position. It takes about 60 sec to fully arm the damper.
