MARKAGE FD - Afmetingen

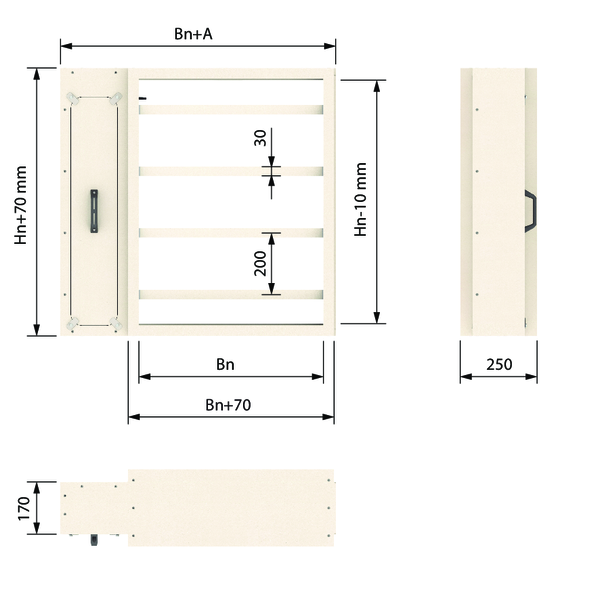

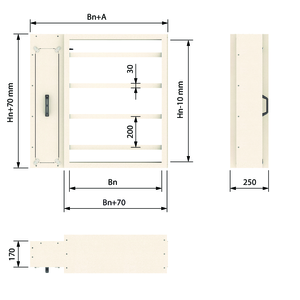

Gamma en afmetingen

≥≤
Hn\Bn [mm]200x2001000x2400
  • Hn per stap van 200 mm, Bn per stap van 50 mm.
  • A = 295 mm.
  • De afmetingen zijn exclusief aansluitkaders of roosters (PG30, PPT).

Gewichten Scroll naar rechts/beneden om de volledige tabel te zien

Hn\Bn [mm]2002503003504004505005506006507007508008509009501000
200kg10,911,612,413,113,914,615,316,116,817,618,319,119,820,521,322,022,8
400kg16,517,418,419,320,221,222,123,124,024,925,926,827,828,729,630,631,5
600kg22,123,224,325,526,627,728,930,031,232,333,434,635,736,838,039,140,2
800kg27,929,330,632,033,334,636,037,338,640,041,342,644,045,346,648,049,3
1000kg33,435,036,538,039,641,142,644,245,747,248,750,351,853,354,956,457,9
1200kg39,341,042,744,546,247,949,751,453,154,956,658,360,061,863,565,267,0
1400kg44,946,848,750,752,654,556,458,460,362,264,166,168,069,971,873,875,7
1600kg50,652,754,956,159,161,263,465,567,669,771,974,076,178,280,382,584,6
1800kg56,558,861,163,465,768,170,472,775,077,379,782,084,386,689,091,393,6
2000kg61,964,567,069,572,074,577,179,682,184,687,189,692,294,797,2100,7102,2
2200kg67,570,272,975,778,481,183,886,589,292,094,797,4100,1102,8104,6108,2111,0
2400kg73,376,279,182,084,987,890,793,796,699,5102,4105,3108,2111,1111,8114,7119,9
