KAMOUFLAGE 1V60 - Afmetingen

Gamma en afmetingen

≥≤
Hn\Bn [mm]300x385700x1075

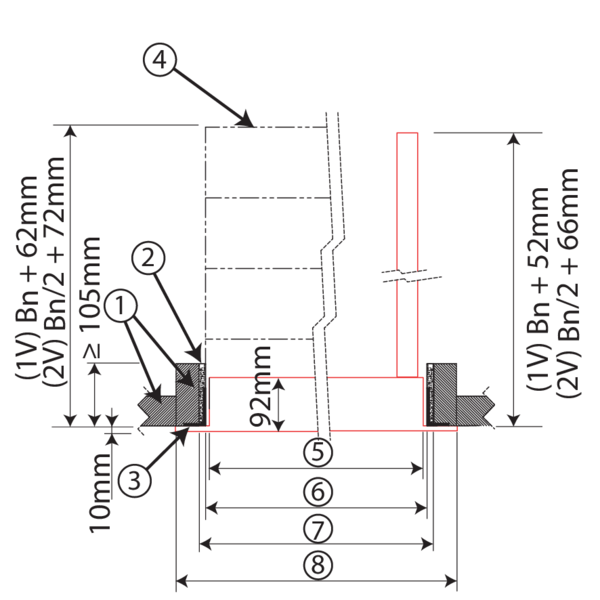

  • 1. Vuurvast materiaal (kanaal)
  • 2. Afdichting indien inbouwkader
  • 3. Inbouwkader EASY-KAP (optie)
  • 4. Inbouwkader met valbeveiliging EASY-KGC (optie)
  • 5. Nominale afmetingen luik Bn x Hn
  • 6. Inbouwafmetingen zonder inbouwkader (Bn+10) x (Hn+10)mm
  • 7. Inbouwafmetingen met inbouwkader (Bn+20) x (Hn+20)mm
  • 8. Buitenafmetingen van het luik (Bn+54) x (Hn+54)mm

Gewichten Scroll naar rechts/beneden om de volledige tabel te zien

Hn\Bn [mm]300350400450500550600650700
385kg7,28,08,69,310,010,711,412,112,7
415kg7,68,49,19,810,511,312,012,713,4
445kg8,08,89,510,311,111,812,613,314,1
475kg8,49,210,010,811,612,413,214,014,8
505kg8,79,610,411,312,112,913,814,615,5
535kg9,110,010,811,712,613,514,415,316,2
565kg9,410,411,312,213,114,115,015,916,8
595kg9,810,811,712,713,714,615,616,617,5
625kg10,211,212,213,214,215,216,217,218,2
655kg10,511,612,613,714,715,716,817,818,9
685kg10,912,013,114,115,216,317,418,519,6
715kg11,212,413,514,615,716,918,019,120,2
745kg11,612,813,915,116,317,418,619,820,9
775kg12,013,214,415,616,818,019,220,421,6
805kg12,313,614,816,117,318,619,821,022,3
835kg12,714,015,316,517,819,120,421,723,0
865kg13,114,415,717,018,419,721,022,323,6
895kg13,414,816,117,518,920,221,623,024,3
925kg13,815,216,618,019,420,822,223,625,0
955kg14,115,617,018,519,921,422,824,325,7
985kg14,516,017,519,020,421,923,424,926,4
1015kg14,916,417,919,421,022,524,025,527,1
1045kg15,216,818,419,921,523,024,626,227,7
1075kg15,617,218,820,422,023,625,226,828,4
