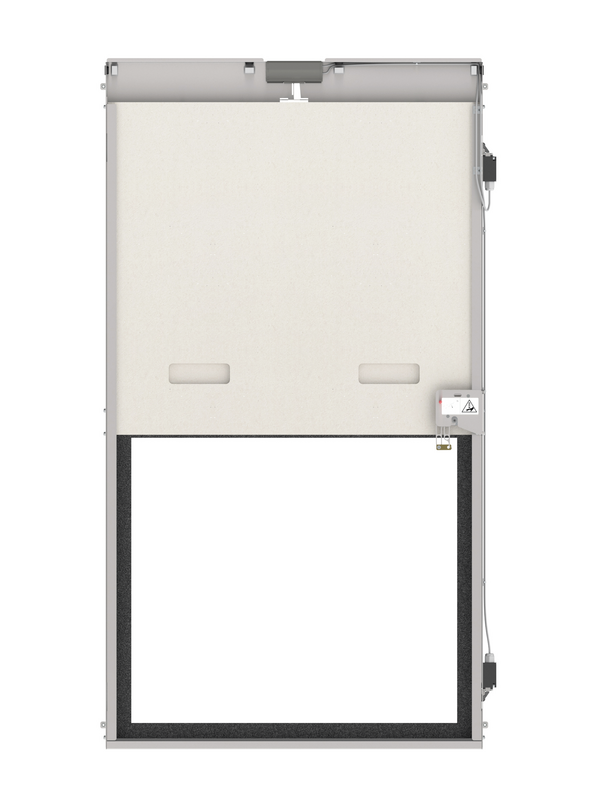

VT60 - Guillotine-type transfer shutter E60 or EI60 (with a grill).

Guillotine-type transfer shutter tested according to European standard EN 1634-1 and classified E60 or EI60 (if finished with a grill). The VT60 is surface-mounted on light and massive walls of 100 mm or built-in with the E-VT60 option.


  • Fast installation
  • Optimal free air passage and minimal pressure loss
  • Compact build-in depth
  • Lightweight
  • Optional in-wall installation kit


  • Dry mounting (surface-mount)
  • Suitable for surface-mounting without a mounting frame on light and rigid wall
  • Tested in accordance with EN 1634-1
  • Unlocking by fusible link
  • Maintenance-free
  • For indoor use

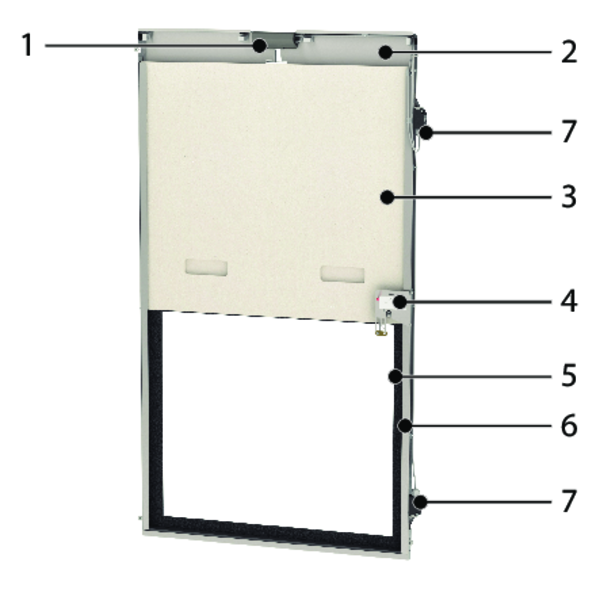

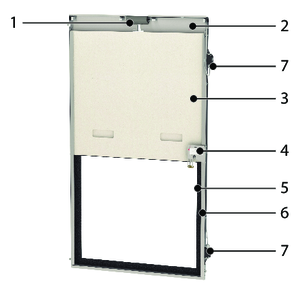

  1. Connection compartment
  2. Steel frame
  3. Damper blade
  4. Fusible link
  5. Intumescent strip
  6. Slides
  7. End and beginning of range switches (option)
