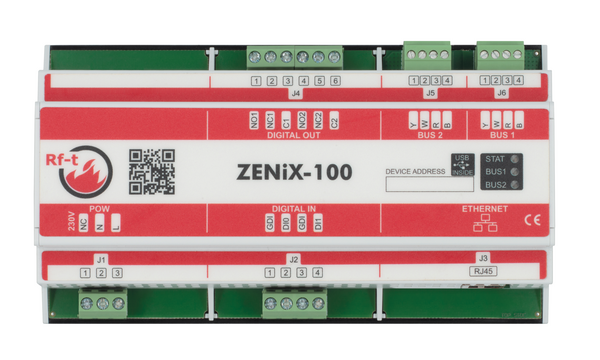

ZENiX-100 - ZENiX-100 controller (master)

The ZENiX-100 controller (master) monitors and controls fire dampers, smoke control dampers and smoke shutters, as well as digital inputs and outputs. Each ZENiX-100 controller can handle up to 100 field devices. Several ZENiX-100 controllers can be connected into a single network. The ZENiX-100 can be used with a pre-programmed basic fire scenario, but also to program elaborate multiple scenarios (matrix). It can be used as a stand alone solution or integrated into a BMS system via a BACnet IP connection.

benefits

  • Onboard preprogrammed basic scenario, activated by digital input
  • Full (matrix) programming possible, including priorities, multiple alarm levels, conditional alarms...
  • System check only requires power on the ZENiX-100 controller
  • ZENiX-100 automatically identifies and addresses all field devices during the data point check
  • Onboard ZENiX Webtool identifies precise location of possible wiring mistakes
  • Onboard BACnet IP gateway for connection to BMS and other systems
  • LEDs indicate status bus communication, alarms and errors

Features

  • 2 digital inputs, potential free
  • 2 relay outputs, (NO/NC) - 125 V AC - 60W
  • Nominal voltage: 230 V AC
  • Power consumption: 24 W
  • For wire sizing: 25 VA
  • Integrated ethernet port, with RJ45 connector
  • DIN rail mounting
  • CE according to EN 50491-5-2
  • CE according to 2004/108/EC and 2006/95/C
