VU120

VU120 - Flange types

PS - No connection (standard connection shaft side). Also possible on shaft side: PG30, PG20, PG40, PM.

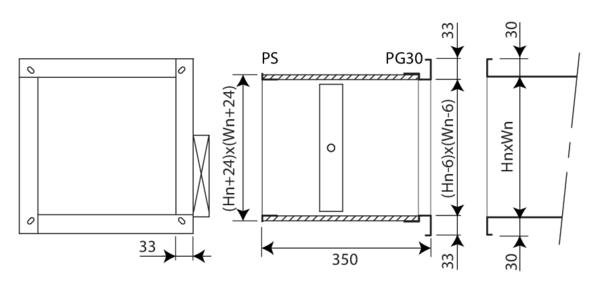

PG30 - Connection to ducts with 30 mm flanges (either by sliding profile or with bolts). Also possible on shaft side instead of PS connection (at order time). Elliptical holes Ø 8,5 x 16 mm.

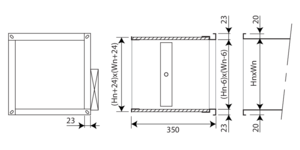

PG20 - Connection to ducts with 20 mm flanges, elliptical holes Ø 6,5 x 16 mm. Also possible on shaft side instead of PS connection (at order time).

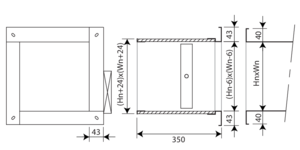

PG40 - Connection to ducts with 40mm flanges, elliptical holes Ø 8,5 x 16 mm. Also possible on shaft side instead of PS / PG30 connection (at order time).

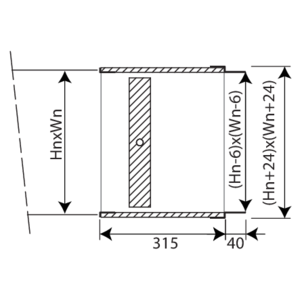

PM - Connection to ducts by insertion. This type of frame is used in case of lack of space for a standard PG30 frame. Possible on mechanism side instead of PG30 connection (at order time).

PRJ - Circular connection with rubber sealing ring on a rectangular damper with PG20 flange. Possible on mechanism side instead of PG30 connection (at order time).

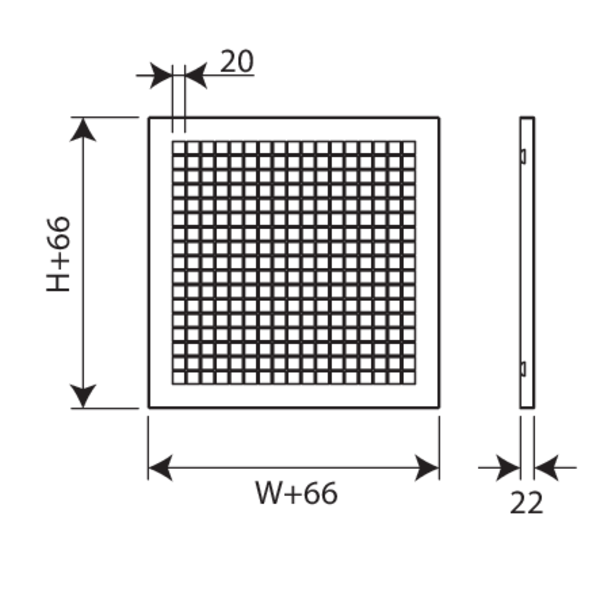

PPT (+PG3V) - Grill, very well suited as protection grill on the end piece of a duct system. Includes PG3V elongated frame as soon as the damper blade exceeds the casing. Possible on mechanism side instead of PG30 connection (at order time).
