SC60-COSMO - Fire and smoke damper cartridge

Fire and smoke damper cartridge

The fire and smoke damper cartridge SC60-COSMO provides a 60' fire resistance and protection against (cold) smoke spreading through the ventilation ducts. The damper is installed at the level of the fire separation and offers a fire resistance of up to 60 minutes. SC60-COSMO also complies with the WRD requirements Sa and S200 as stipulated in NEN 6075:2020.

benefits

  • 1 certified solution that meets WBDBO and WRD requirements for both supply and extract air
  • Easy to install
  • No space is lost at the wall crossing
  • Also suitable for insulated air ducts

Features

  • Tested according to EN 1366-2 up to 300 Pa
  • Complies with the provisions for fire dampers according to NEN 6075:2020, with classification Sa and S200
  • Suitable for installation in rigid wall, flexible wall (metal stud gypsum plasterboard wall), asymmetric rigid and flexible wall
  • Sealing with fire resistant stone wool boards allowed, also for asymmetric opening
  • For indoor use
  • Ambient temperature below 50°C

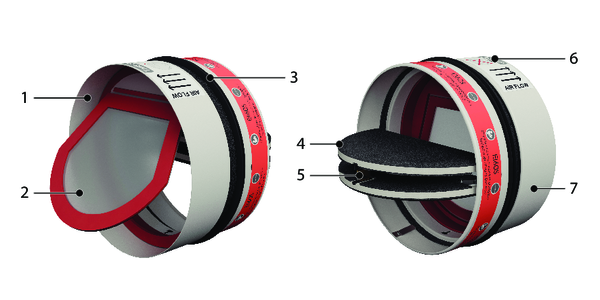

Components

Components
  1. Steel tunnel
  2. Backdraft damper
  3. Rubber sealing ring
  4. Blades
  5. Fusible link
  6. Label indicating airflow direction and orientation
  7. Product identification
