SC60-COSMO - Installation

Placement specific to COSMO

1

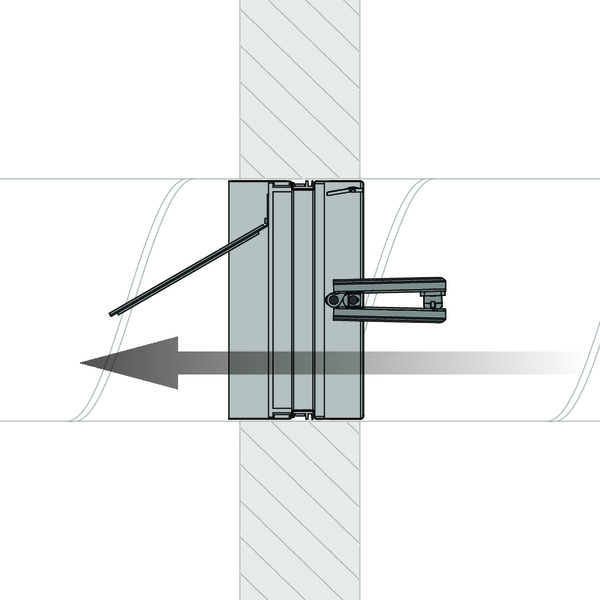

Installation direction for supply
2

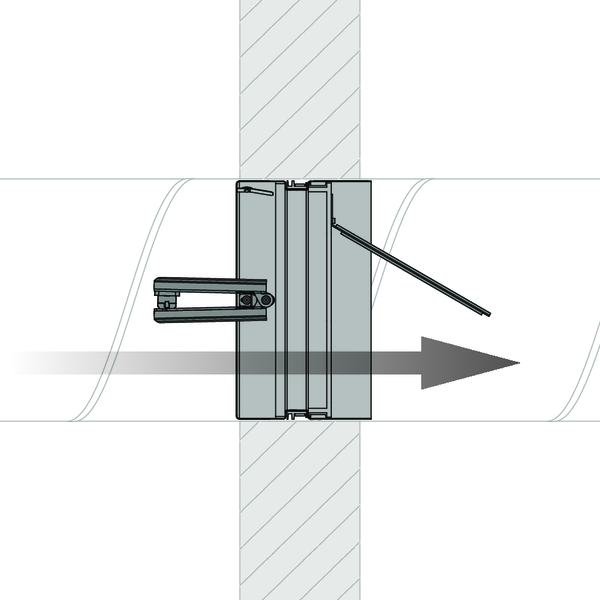

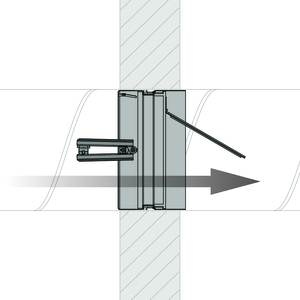

Installation direction for extraction
3

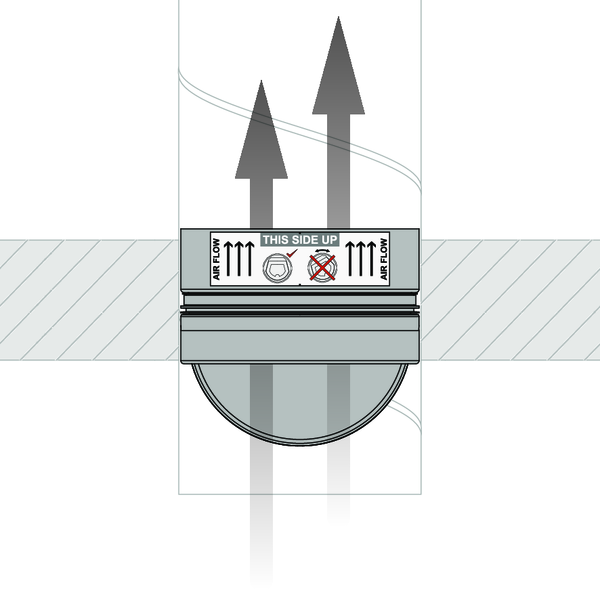

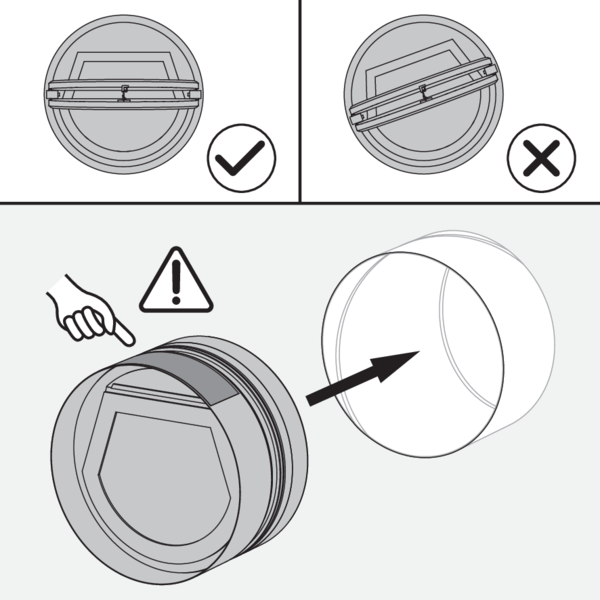

Orientation of the product
4
Top view
5

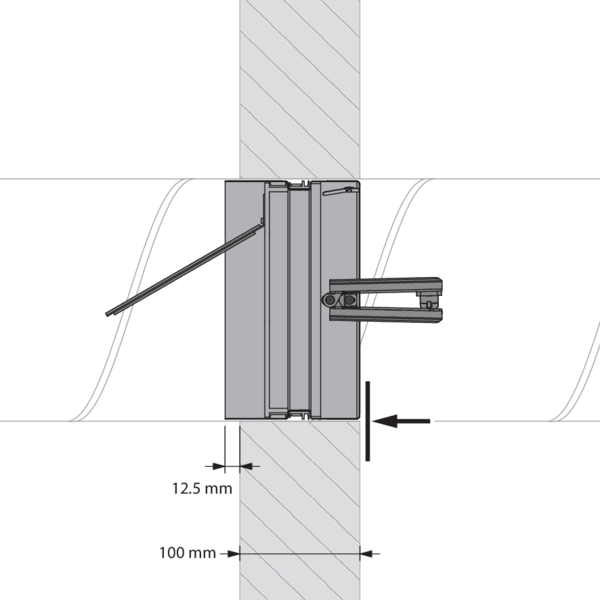

Placement in relation to compartment wall
6

Operation: manual opening

1
2
Press the two blocking hooks carefully to unlock the blades.
3
Click the fusible link into the holder to lock the blades.

Operation: manual closing

1
2
Unlock (close) the damper blades by pushing them towards each other. Carefully unlock the fusible link by pushing it sidewards.
3

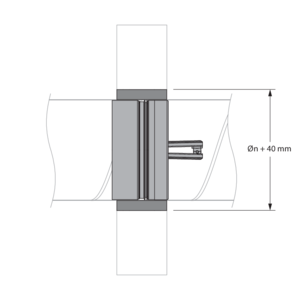

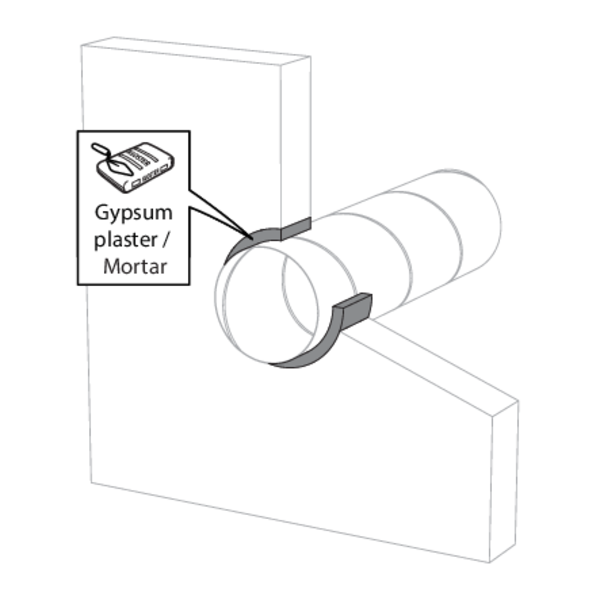

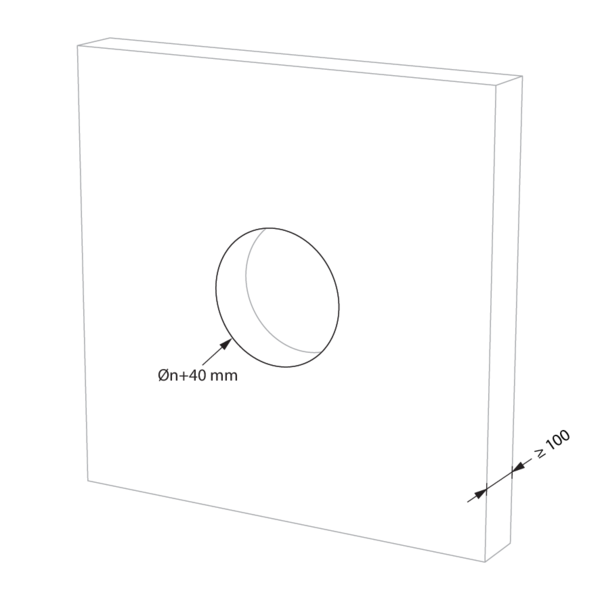

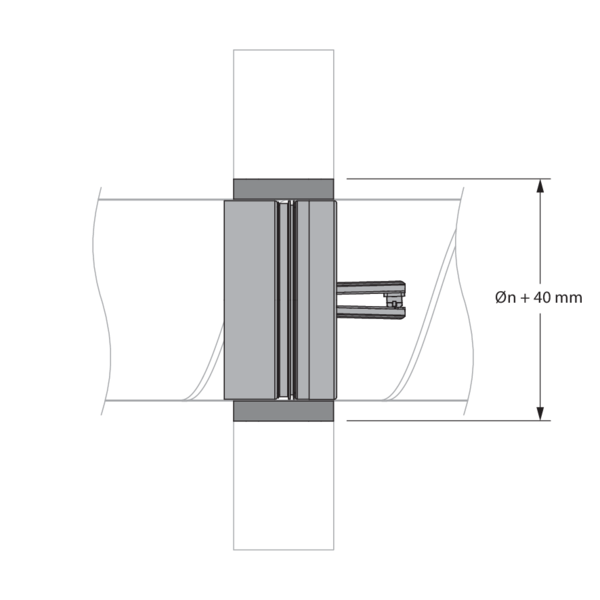

Installation in rigid wall, sealing with gypsum plaster or mortar

The product was tested and approved in:
  • Aerated concrete ≥ 100 mm | EI 60 (ve i o) S - (300Pa) | Mortar | Type of installation: built-in inside a duct, 0° | SC60-COSMO Ø 100-200 mm
  • Aerated concrete ≥ 100 mm | EI 60 (ve i o) S - (300Pa) | Gypsum | Type of installation: built-in inside a duct, 0° | SC60-COSMO Ø 100-200 mm
1
2
3
Place the SC60-COSMO in the correct direction and orientation.
4

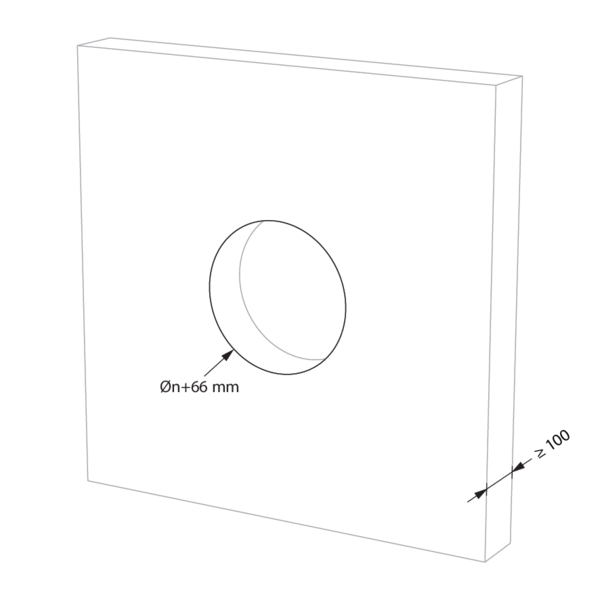

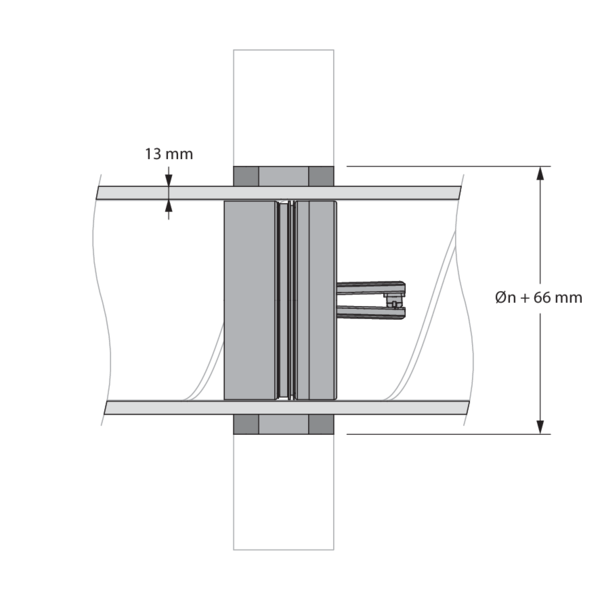

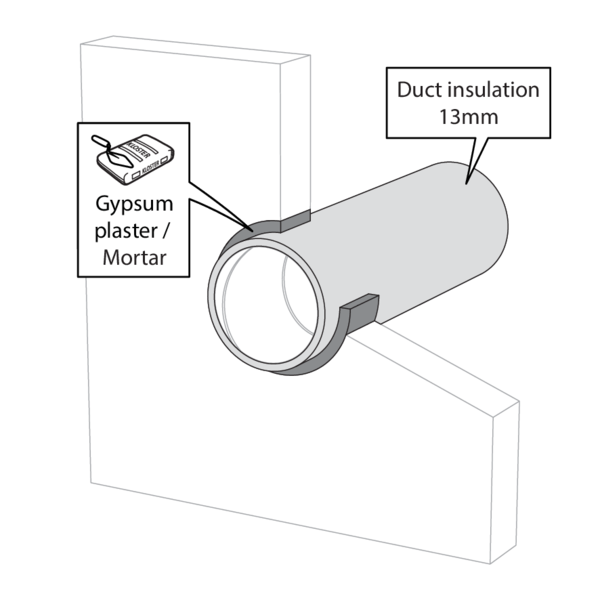

Installation in rigid wall - insulated duct with mortar / gypsum sealing

The product was tested and approved in:
  • Aerated concrete ≥ 100 mm | EI 60 (ve i o) S - (300Pa) | Insulated duct (ArmaFlex EVO, ArmaFlex Ultima, ArmaFlex Protect – up to 13 mm) + mortar | Type of installation: built-in inside a duct, 0° | SC60-COSMO Ø 100-200 mm
  • Aerated concrete ≥ 100 mm | EI 60 (ve i o) S - (300Pa) | Insulated duct (ArmaFlex EVO, ArmaFlex Ultima, ArmaFlex Protect – up to 13 mm) + gypsum | Type of installation: built-in inside a duct, 0° | SC60-COSMO Ø 100-200 mm
1
2
3
Place the SC60-COSMO in the correct direction and orientation.
4

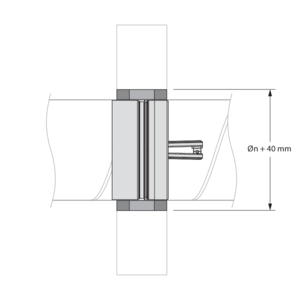

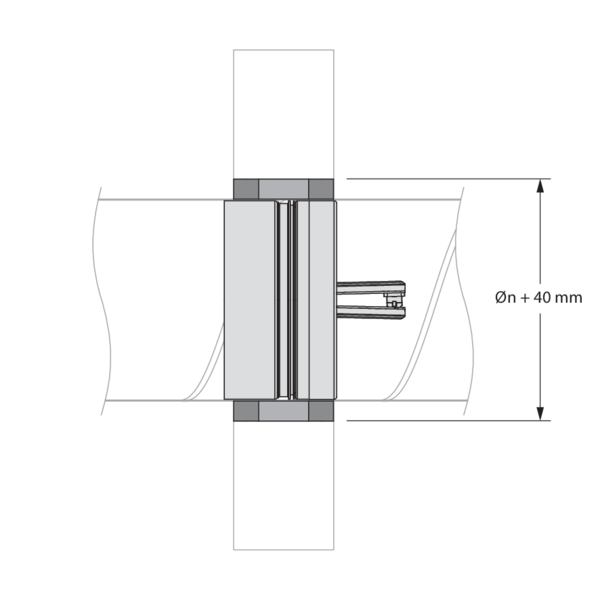

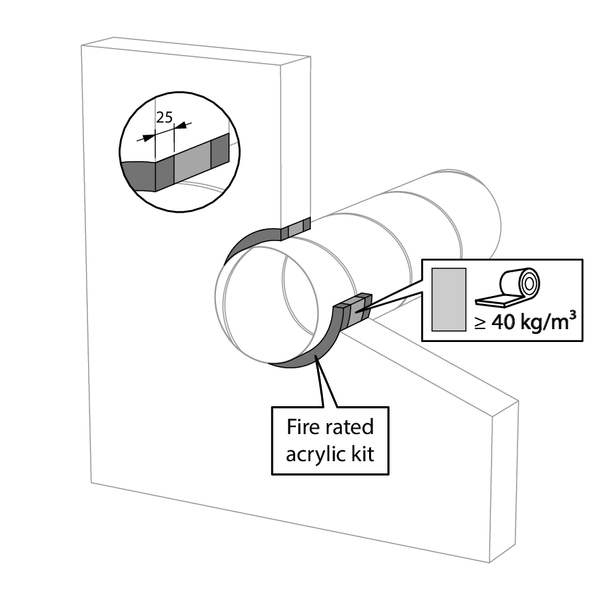

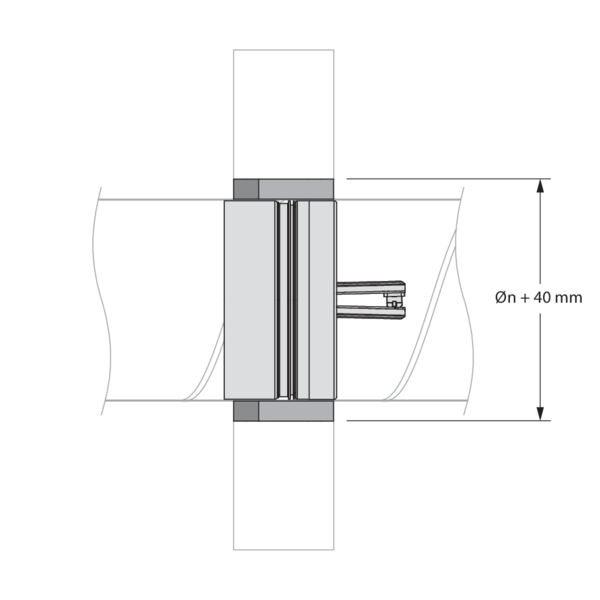

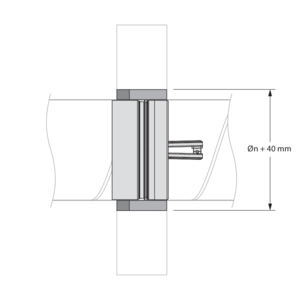

Installation in rigid wall with stone wool ≥40 kg/m³ and graphite sealant sealing

The product was tested and approved in:
  • Aerated concrete ≥ 100 mm | EI 60 (ve i o) S - (300Pa) | Stone wool ≥ 40 kg/m³ + graphite kit | Type of installation: built-in inside a duct, 0° | SC60-COSMO Ø 100-200 mm
1
2

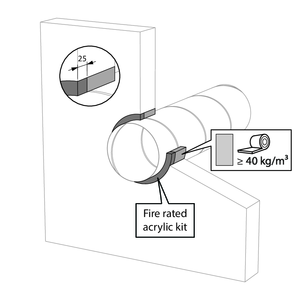

The opening around the duct is sealed with soft stone wool and filled with 25mm graphite sealant on both sides of the wall.
3
Place the SC60-COSMO in the correct direction and orientation.
4

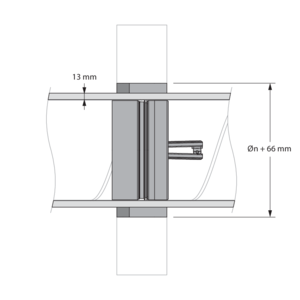

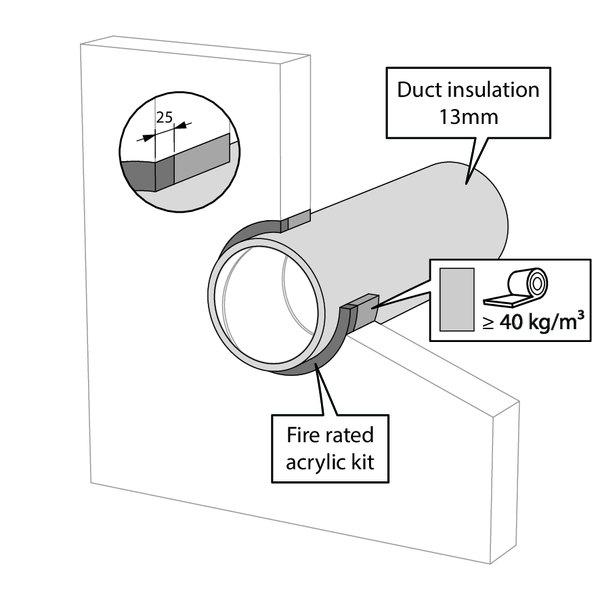

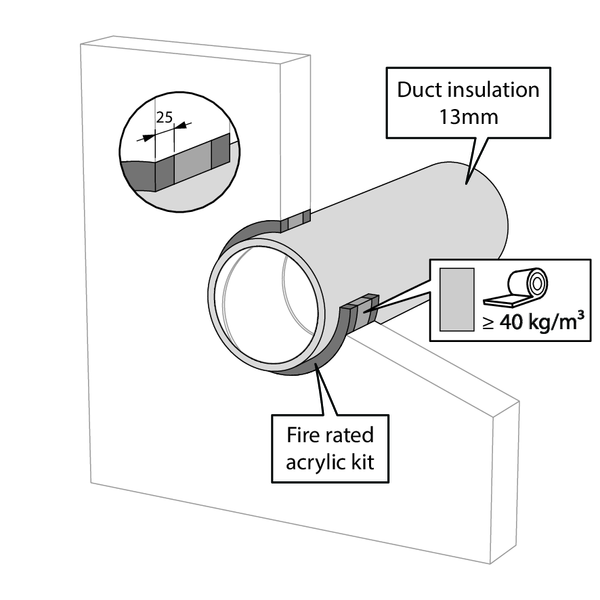

Installation in rigid wall - insulated duct with stone wool ≥40 kg/m³ and graphite sealant sealing

The product was tested and approved in:
  • Aerated concrete ≥ 100 mm | EI 60 (ve i o) S - (300Pa) | Insulated duct (ArmaFlex EVO, ArmaFlex Ultima, ArmaFlex Protect – up to 13 mm) + stone wool ≥ 40 kg/m³ + graphite kit | Type of installation: built-in inside a duct, 0° | SC60-COSMO Ø 100-200 mm
1
2

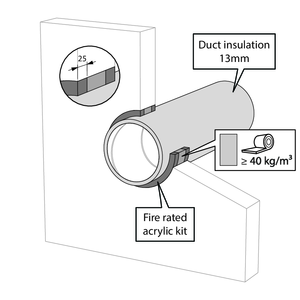

The opening around the duct is sealed with soft stone wool and filled with 25mm graphite sealant on both sides of the wall.
3
Place the SC60-COSMO in the correct direction and orientation.
4

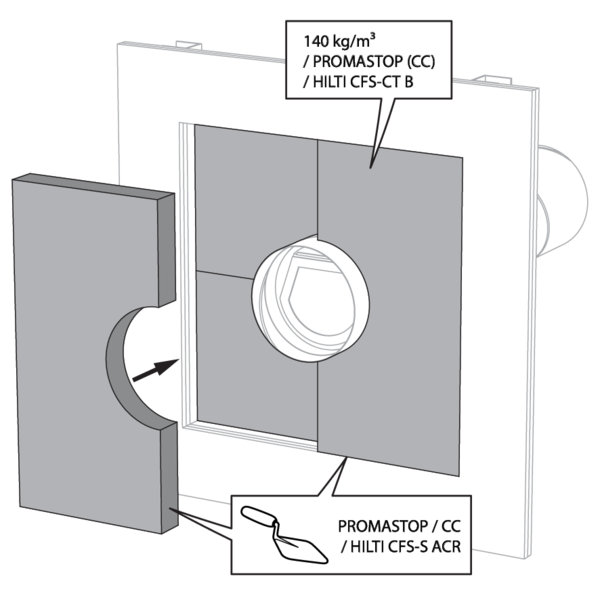

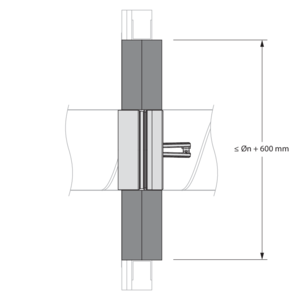

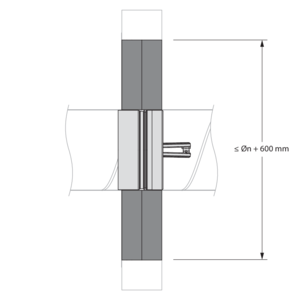

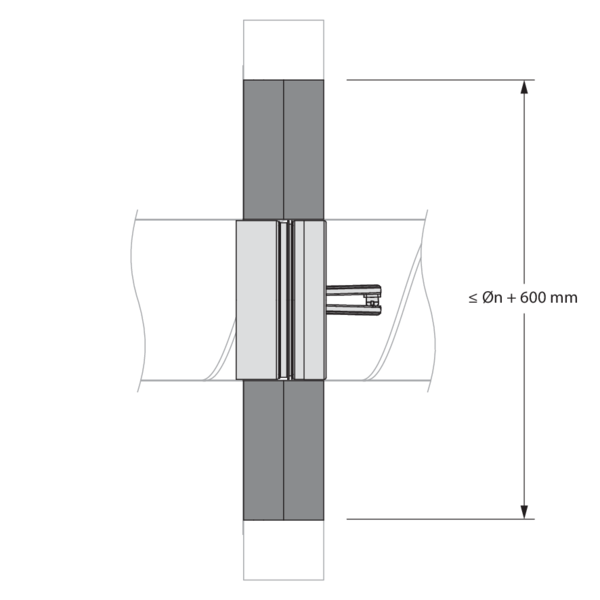

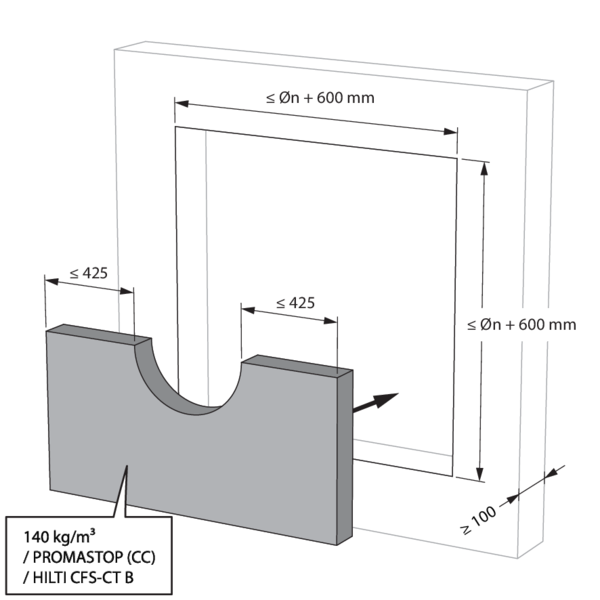

Installation in rigid wall with fire batt and coating ≥140 kg/m³ sealing

The product was tested and approved in:
  • Aerated concrete ≥ 100 mm | EI 60 (ve i o) S - (300Pa) | Stone wool + coating ≥ 140 kg/m³ | Type of installation: built-in inside a duct, 0° | SC60-COSMO Ø 100-200 mm
1
2

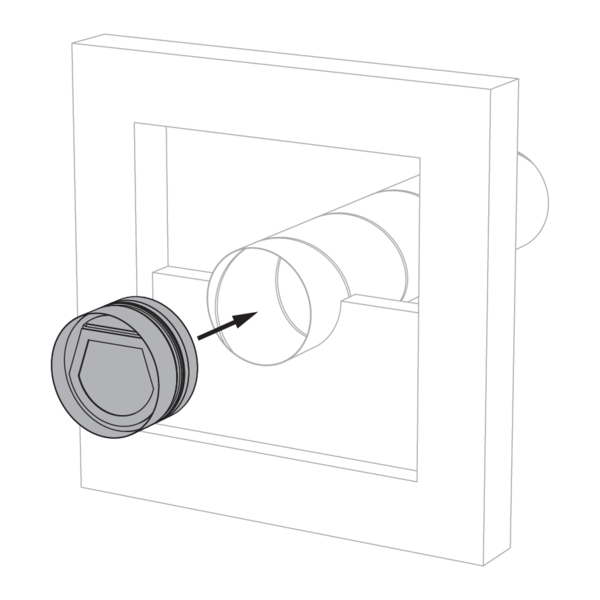

Place the SC60-COSMO in the correct direction and orientation.
3

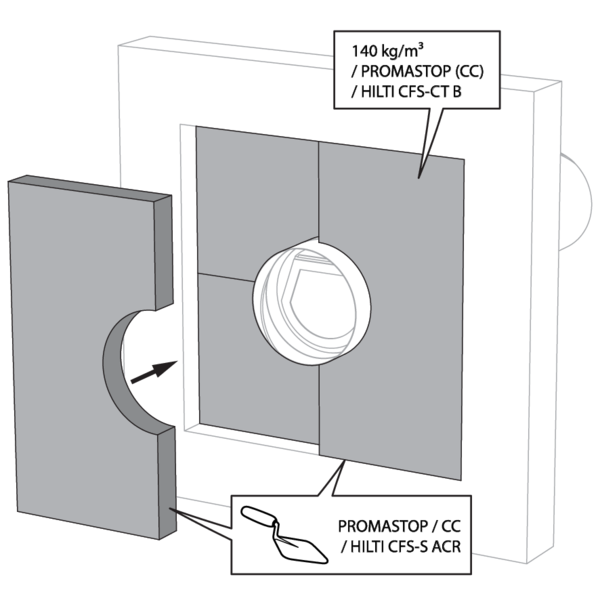

The opening in the wall around the duct is sealed with 2 layers of 50 mm-thick stone wool panels with fire resistant coating on one side (type PROMASTOP-CC 50 / HILTI CFS-CT B).
4

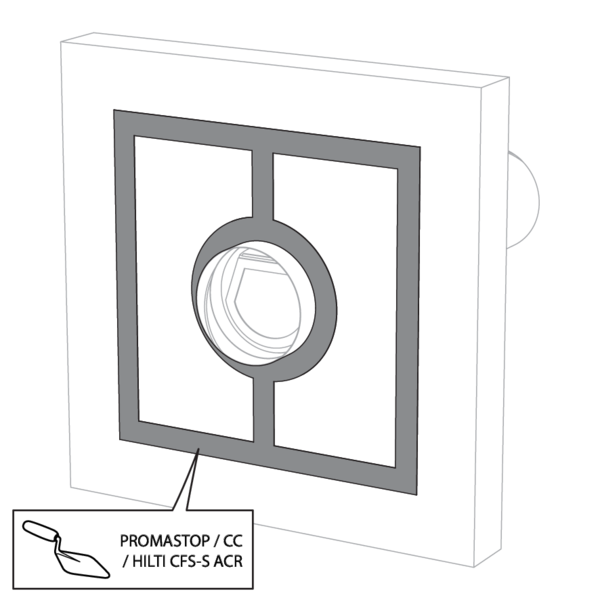

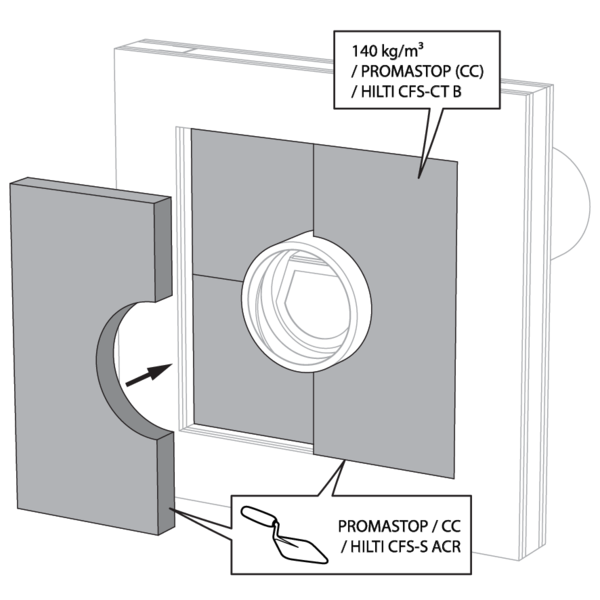

The joints on these 2 layers must be installed staggered and covered all around the edge with coating (type PROMASTOP-CC / HILTI CFS-S-ACR).
5

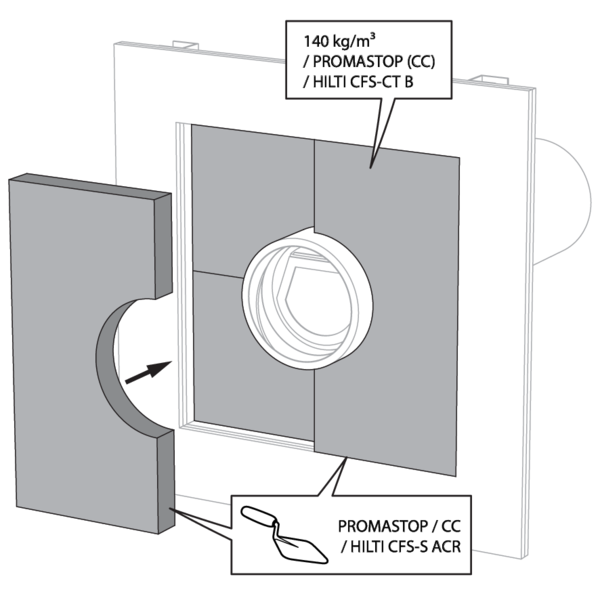

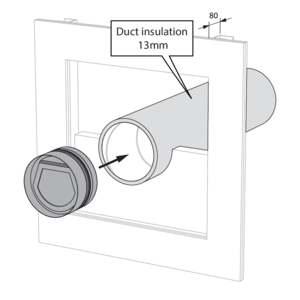

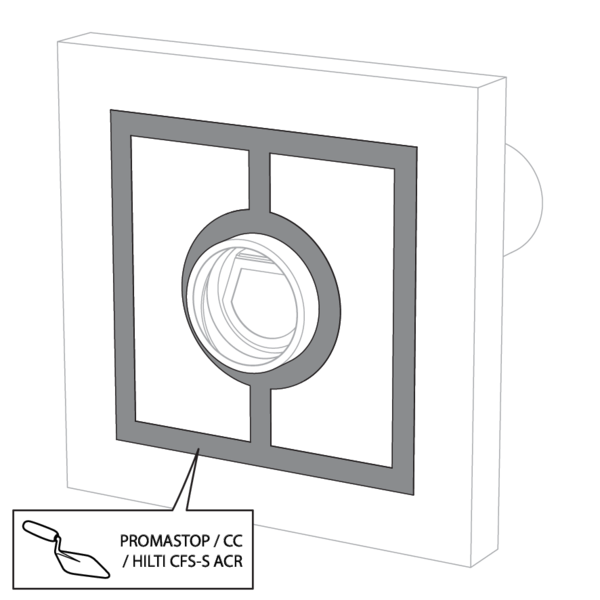

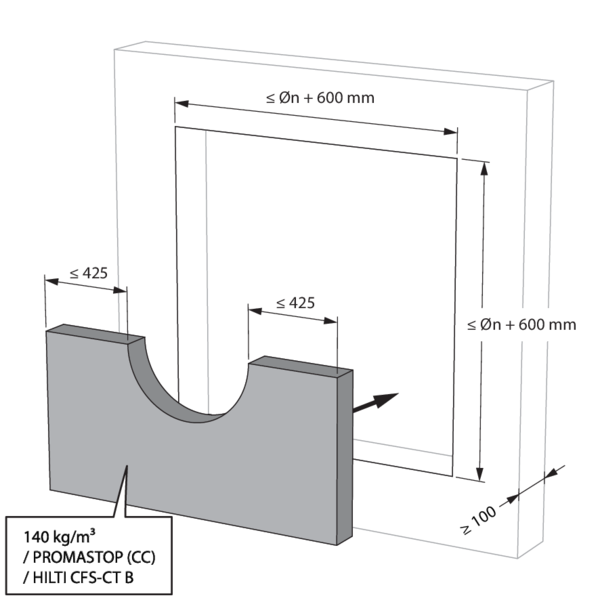

Installation in rigid wall – insulated duct with fire batt and coating ≥ 140 kg/m³ sealing

The product was tested and approved in:
  • Aerated concrete ≥ 100 mm | EI 60 (ve i o) S - (300Pa) | Insulated duct (ArmaFlex EVO, ArmaFlex Ultima, ArmaFlex Protect – up to 13 mm) + stone wool + coating ≥ 140 kg/m³ | Type of installation: built-in inside a duct, 0° | SC60-COSMO Ø 100-200 mm
1
2

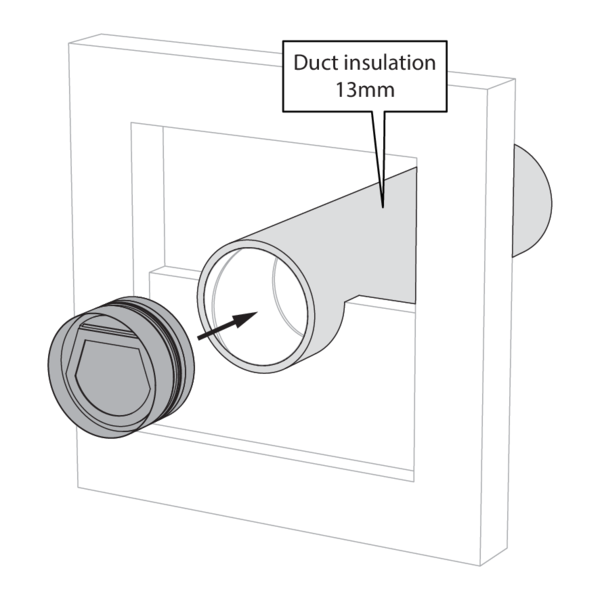

Place the SC60-COSMO in the correct direction and orientation.
3
The opening in the wall around the duct is sealed with 2 layers of 50 mm-thick stone wool panels with fire resistant coating on one side (type PROMASTOP-CC 50 / HILTI CFS-CT B).
4
The joints on these 2 layers must be installed staggered and covered all around the edge with coating (type PROMASTOP-CC / HILTI CFS-S-ACR).
5

Installation in asymmetric rigid wall with stone wool ≥40 kg/m³ and graphite sealant sealing

The product was tested and approved in:
  • Aerated concrete ≥ 100 mm | EI 60 (ve i o) S - (300Pa) | Stone wool ≥ 40 kg/m³ + graphite kit (sealing applied from one side) | Type of installation: built-in inside a duct, 0° | SC60-COSMO Ø 100-200 mm
1
2
The opening around the duct is sealed with soft stone wool and filled with 25mm graphite sealant on the accessible side of the wall.
3
Place the SC60-COSMO in the correct direction and orientation.
4

Installation in asymmetric rigid wall - insulated duct with stone wool ≥40 kg/m³ and graphite sealant sealing

The product was tested and approved in:
  • Aerated concrete ≥ 100 mm | EI 60 (ve i o) S - (300Pa) | Insulated duct (ArmaFlex EVO, ArmaFlex Ultima, ArmaFlex Protect – up to 13 mm) + stone wool ≥ 40 kg/m³ + graphite kit (sealing applied from one side) | Type of installation: built-in inside a duct, 0° | SC60-COSMO Ø 100-200 mm
1
2
The opening around the duct is sealed with soft stone wool and filled with 25mm graphite sealant on the accessible side of the wall.
3
Place the SC60-COSMO in the correct direction and orientation.
4

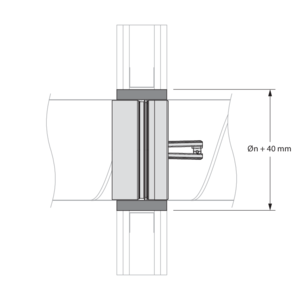

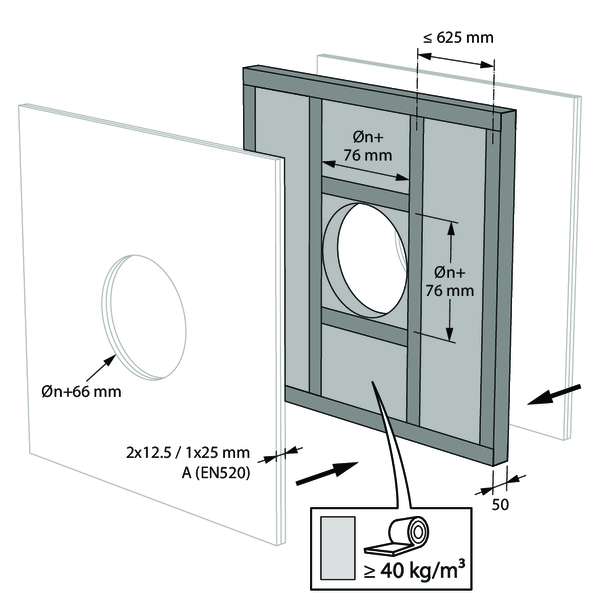

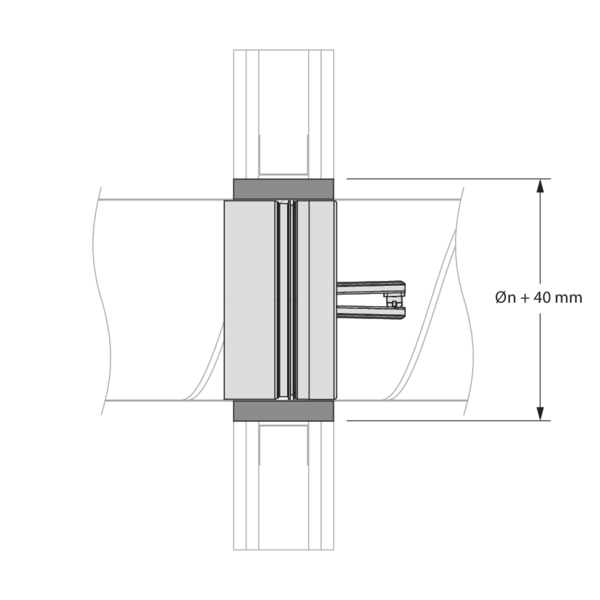

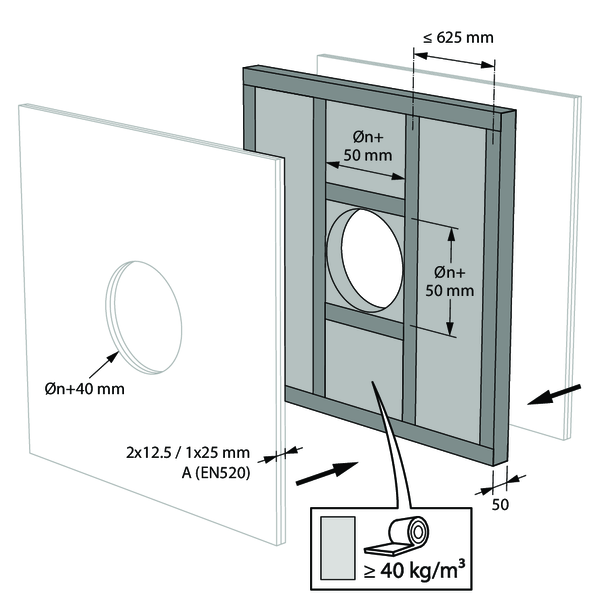

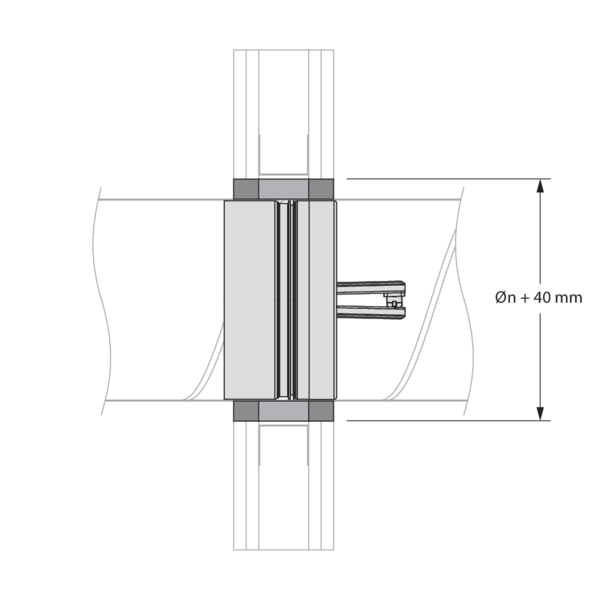

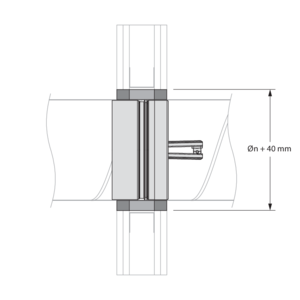

Installation in flexible wall with stone wool ≥40 kg/m³ and graphite sealant sealing

The product was tested and approved in:
  • Metal studs gypsum plasterboard Type A (EN 520) ≥ 100 mm | EI 60 (ve i o) S - (300Pa) | Stone wool ≥ 40 kg/m³ + graphite kit | Type of installation: built-in inside a duct, 0° | SC60-COSMO Ø 100-200 mm
1
2

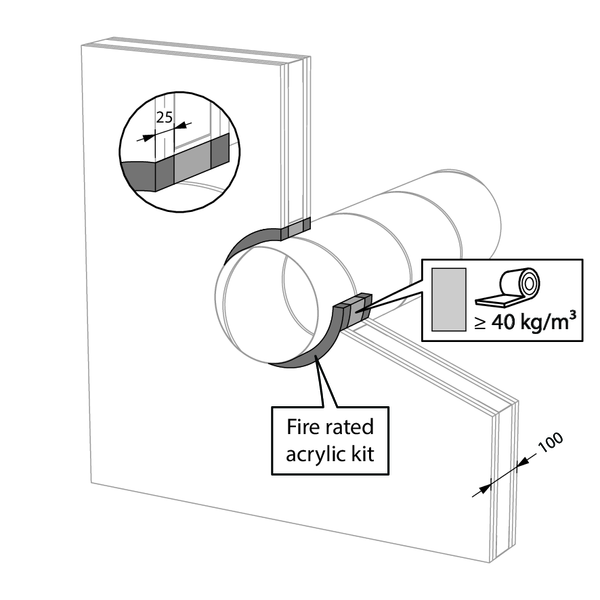

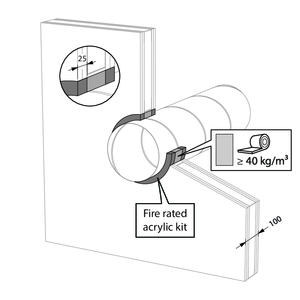

The opening around the duct is sealed with soft stone wool and filled with 25mm graphite sealant on both sides of the wall.
3
Place the SC60-COSMO in the correct direction and orientation.
4

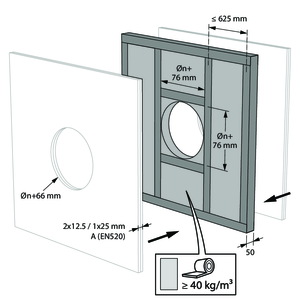

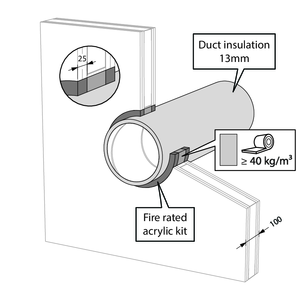

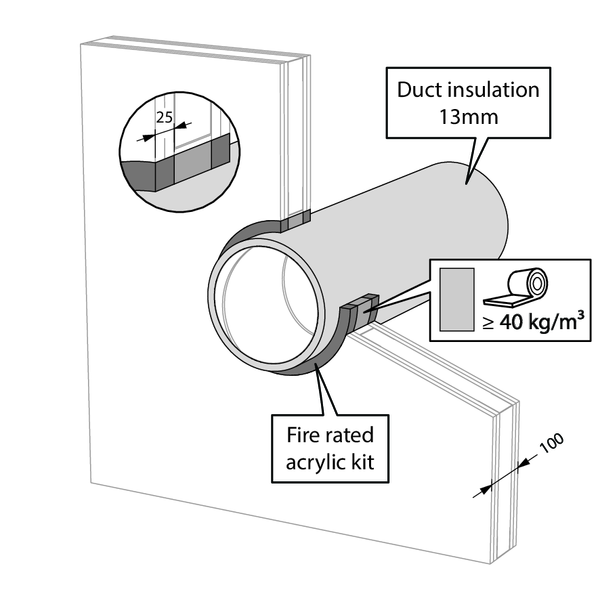

Installation in flexible wall - insulated duct with stone wool ≥40 kg/m³ and graphite sealant sealing

The product was tested and approved in:
  • Metal studs gypsum plasterboard Type A (EN 520) ≥ 100 mm | EI 60 (ve i o) S - (300Pa) | Insulated duct (ArmaFlex EVO, ArmaFlex Ultima, ArmaFlex Protect – up to 13 mm) + stone wool ≥ 40 kg/m³ + graphite kit | Type of installation: built-in inside a duct, 0° | SC60-COSMO Ø 100-200 mm
1
2
The opening around the duct is sealed with soft stone wool and filled with 25mm graphite sealant on both sides of the wall.
3
Place the SC60-COSMO in the correct direction and orientation.
4

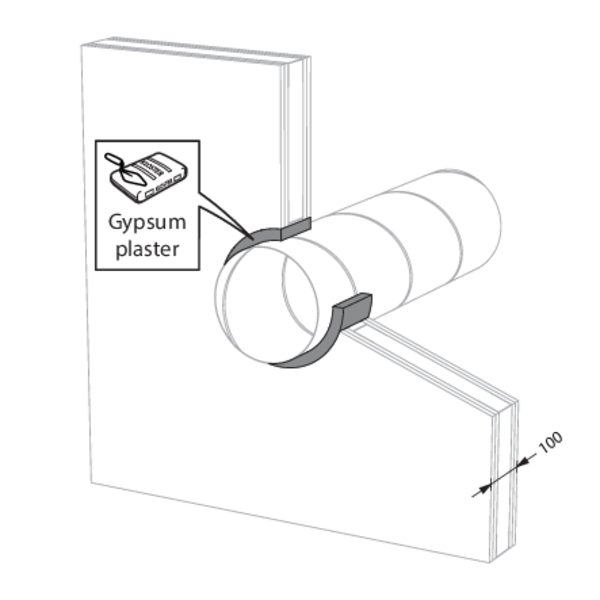

Installation in flexible wall with gypsum sealing

The product was tested and approved in:
  • Metal studs gypsum plasterboard Type A (EN 520) ≥ 100 mm | EI 60 (ve i o) S - (300Pa) | Gypsum | Type of installation: built-in inside a duct, 0° | SC60-COSMO Ø 100-200 mm
1
2
3

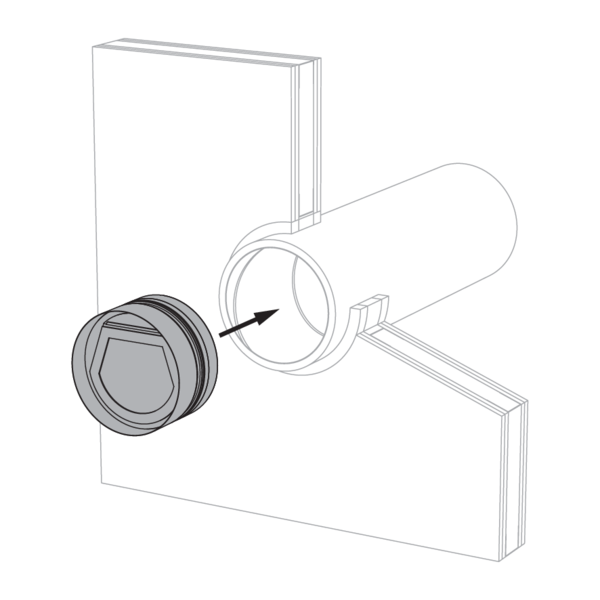

Place the SC60-COSMO in the correct direction and orientation.
4

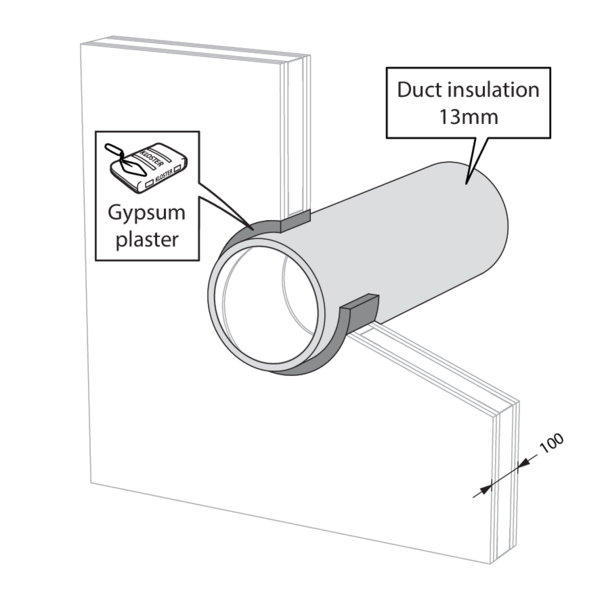

Installation in flexible wall - insulated duct with gypsum sealing

The product was tested and approved in:
  • Metal studs gypsum plasterboard Type A (EN 520) ≥ 100 mm | EI 60 (ve i o) S - (300Pa) | Insulated duct (ArmaFlex EVO, ArmaFlex Ultima, ArmaFlex Protect – up to 13 mm) + gypsum | Type of installation: built-in inside a duct, 0° | SC60-COSMO Ø 100-200 mm
1
2
3
Place the SC60-COSMO in the correct direction and orientation.
4

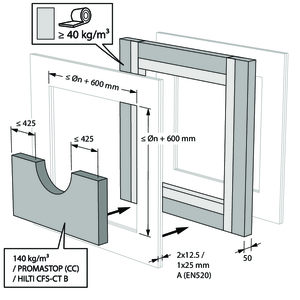

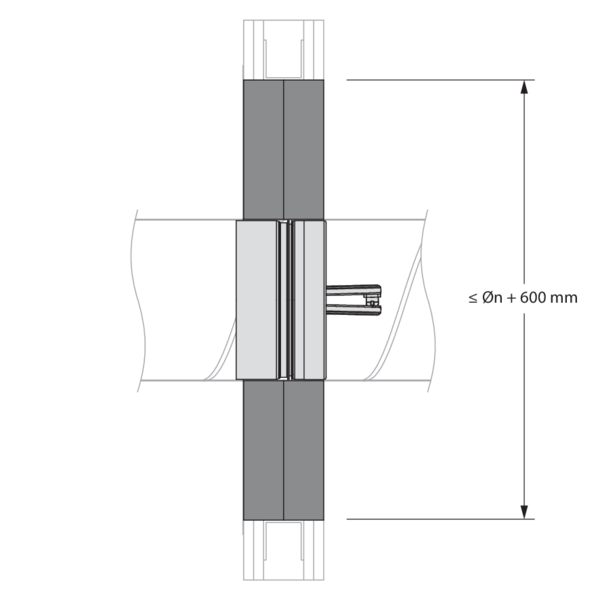

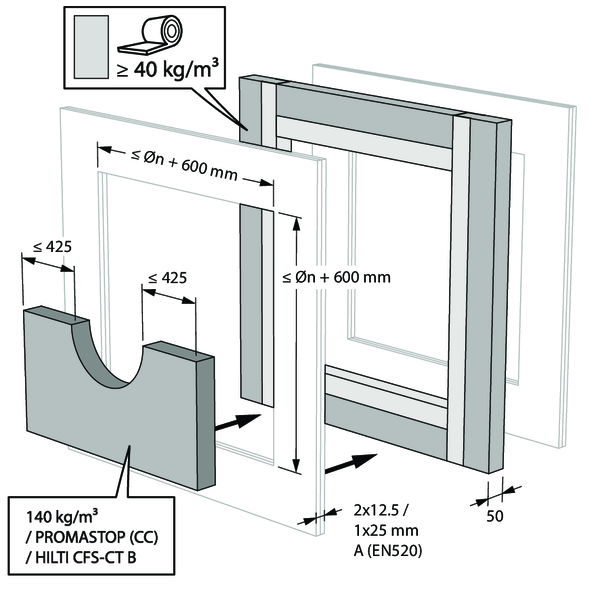

Installation in flexible wall with fire batt and coating ≥ 140 kg/m³ sealing

The product was tested and approved in:
  • Metal studs gypsum plasterboard Type A (EN 520) ≥ 100 mm | EI 60 (ve i o) S - (300Pa) | Stone wool + coating ≥ 140 kg/m³ | Type of installation: built-in inside a duct, 0° | SC60-COSMO Ø 100-200 mm
1
2

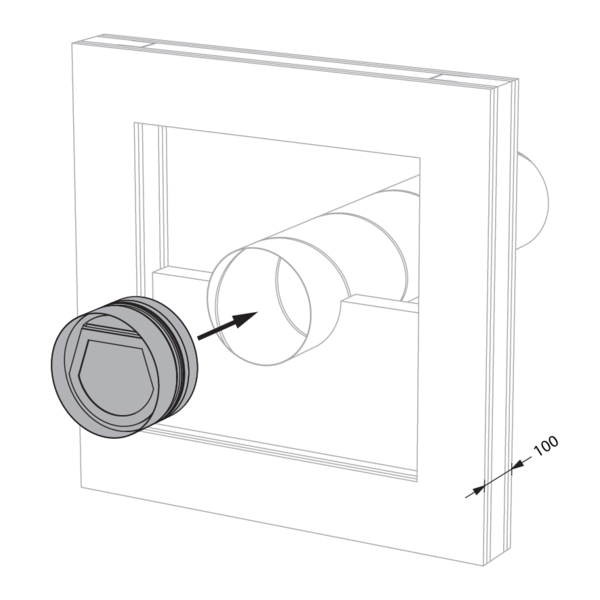

Place the SC60-COSMO in the correct direction and orientation.
3

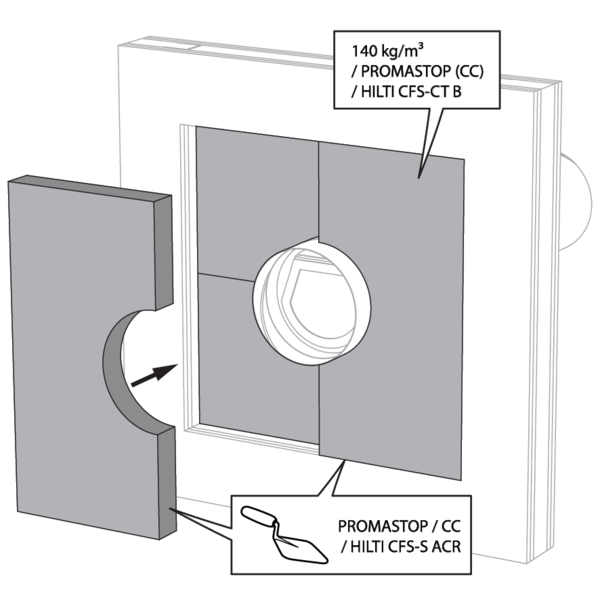

The opening in the wall around the duct is sealed with 2 layers of 50 mm-thick stone wool panels with fire resistant coating on one side (type PROMASTOP-CC 50 / HILTI CFS-CT B).
4

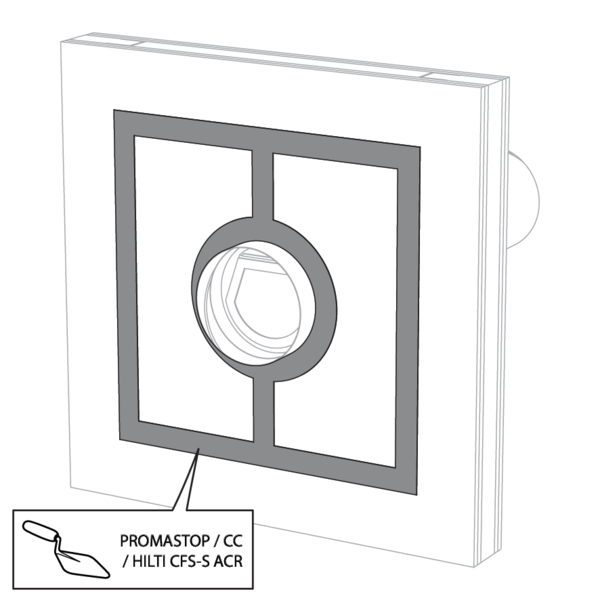

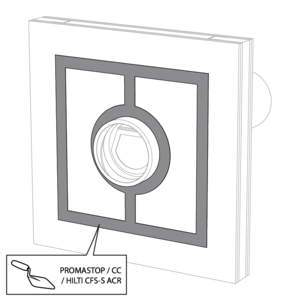

The joints on these 2 layers must be installed staggered and covered all around the edge with coating (type PROMASTOP-CC / HILTI CFS-S-ACR).
5

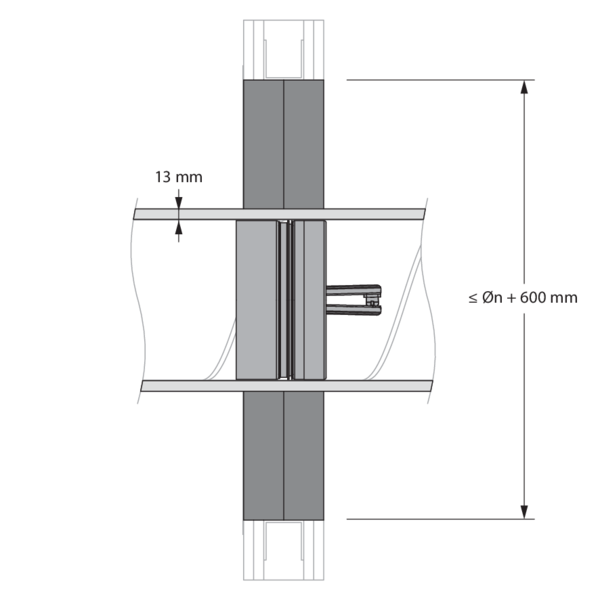

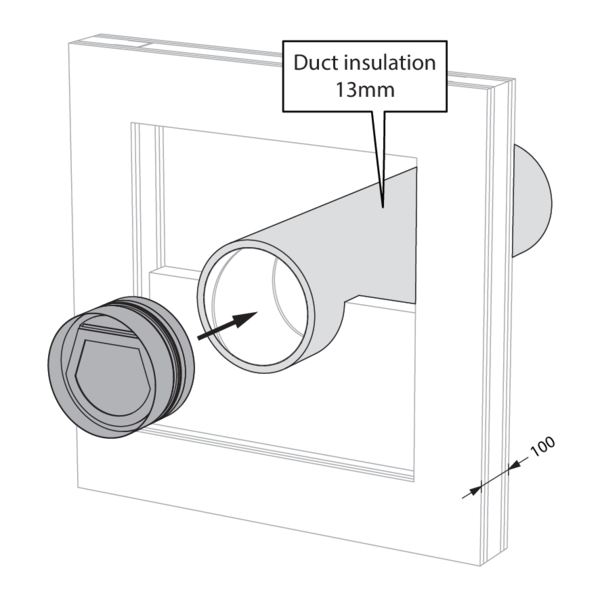

Installation in flexible wall - insulated duct with fire batt and coating ≥ 140 kg/m³ sealing

The product was tested and approved in:
  • Metal studs gypsum plasterboard Type A (EN 520) ≥ 100 mm | EI 60 (ve i o) S - (300Pa) | Insulated duct (ArmaFlex EVO, ArmaFlex Ultima, ArmaFlex Protect – up to 13 mm) + stone wool + coating ≥ 140 kg/m³ | Type of installation: built-in inside a duct, 0° | SC60-COSMO Ø 100-200 mm
1
2
Place the SC60-COSMO in the correct direction and orientation.
3
The opening in the wall around the duct is sealed with 2 layers of 50 mm-thick stone wool panels with fire resistant coating on one side (type PROMASTOP-CC 50 / HILTI CFS-CT B).
4
The joints on these 2 layers must be installed staggered and covered all around the edge with coating (type PROMASTOP-CC / HILTI CFS-S-ACR).
5

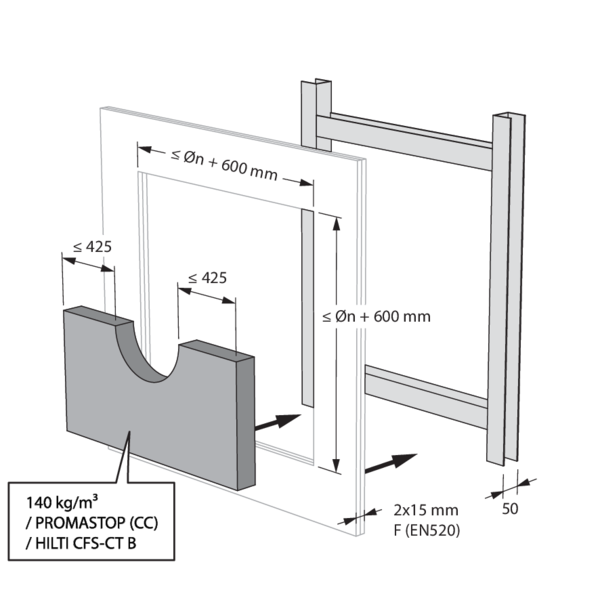

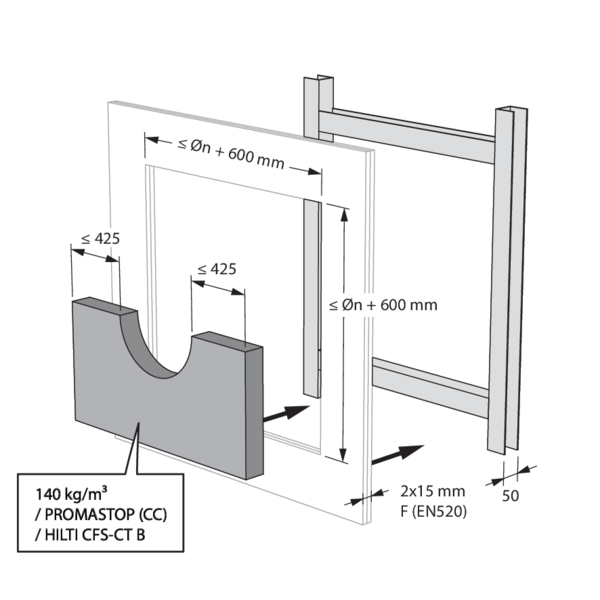

Installation in asymmetric flexible wall with fire batt and coating ≥ 140 kg/m³

The product was tested and approved in:
  • Metal studs gypsum plasterboard Type F (EN 520) ≥ 80 mm | EI 60 (ve i o) S - (300Pa) | Stone wool ≥ 140 kg/m³ + coating (sealing applied from one side) | Type of installation: built-in inside a duct, 0° | SC60-COSMO Ø 100-200 mm
1
2

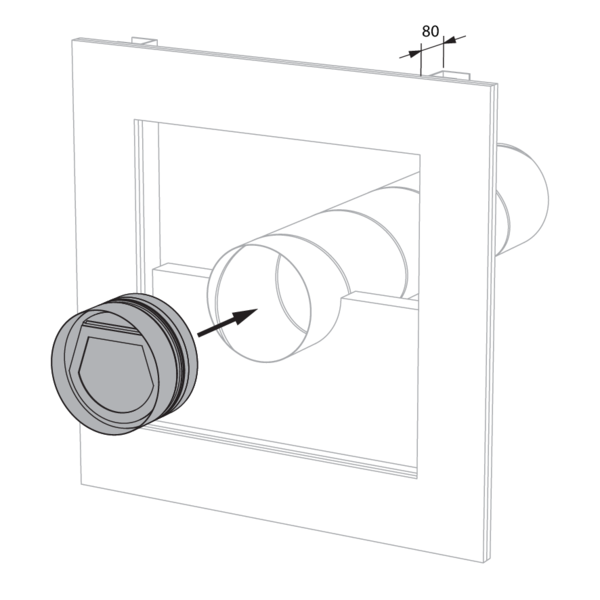

Place the SC60-COSMO in the correct direction and orientation.
3
The opening in the wall around the duct is sealed with 2 layers of 50 mm-thick stone wool panels with fire resistant coating on one side (type PROMASTOP-CC 50 / HILTI CFS-CT B).
4

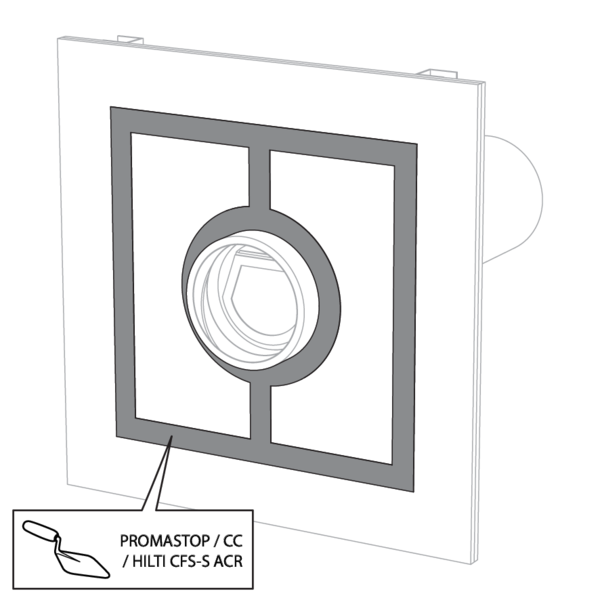

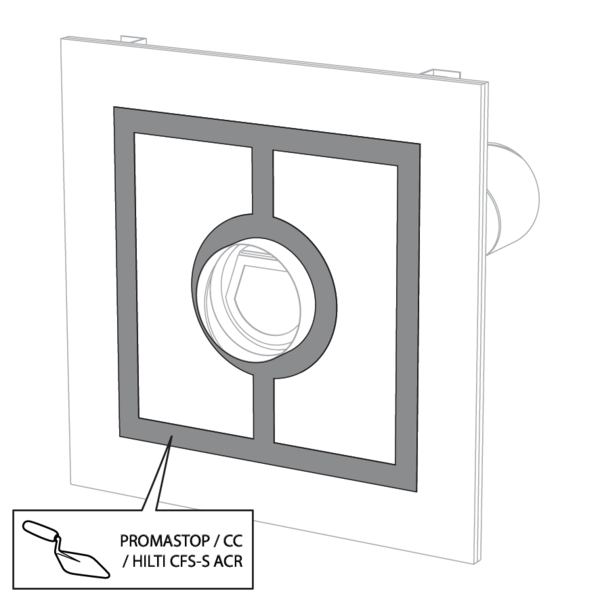

These boards must be installed staggered and, on the accessible side, the joints must be covered all around with filling paste (type PROMASTOP-CC / HILTI CFS-S-ACR).
5

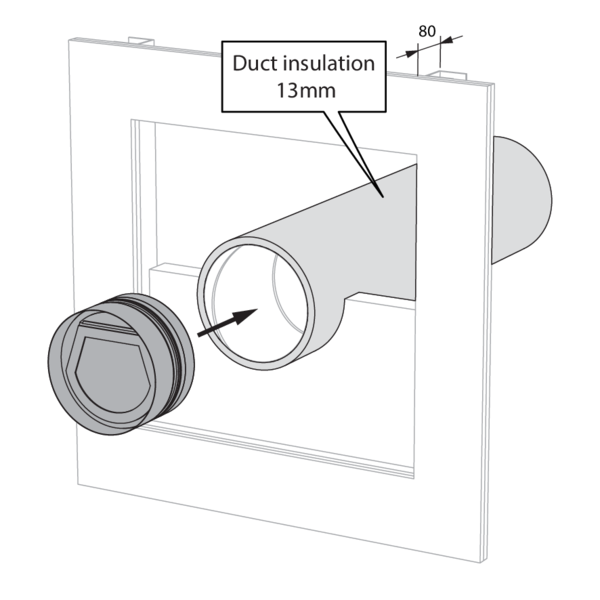

Installation in asymmetric flexible wall - insulated duct with fire batt and coating ≥ 140 kg/m³

The product was tested and approved in:
  • Metal studs gypsum plasterboard Type F (EN 520) ≥ 80 mm | EI 60 (ve i o) S - (300Pa) | Insulated duct (ArmaFlex EVO, ArmaFlex Ultima, ArmaFlex Protect – up to 13 mm) + stone wool ≥ 140 kg/m³ + coating (sealing applied from one side) | Type of installation: built-in inside a duct, 0° | SC60-COSMO Ø 100-200 mm
1
2
Place the SC60-COSMO in the correct direction and orientation.
3
The opening in the wall around the duct is sealed with 2 layers of 50 mm-thick stone wool panels with fire resistant coating on one side (type PROMASTOP-CC 50 / HILTI CFS-CT B).
4
These boards must be installed staggered and, on the accessible side, the joints must be covered all around with filling paste (type PROMASTOP-CC / HILTI CFS-S-ACR).
5

General remarks

  • Verify if the blade can move freely.
  • The fire damper cartridge must remain accessible for inspection and maintenance.

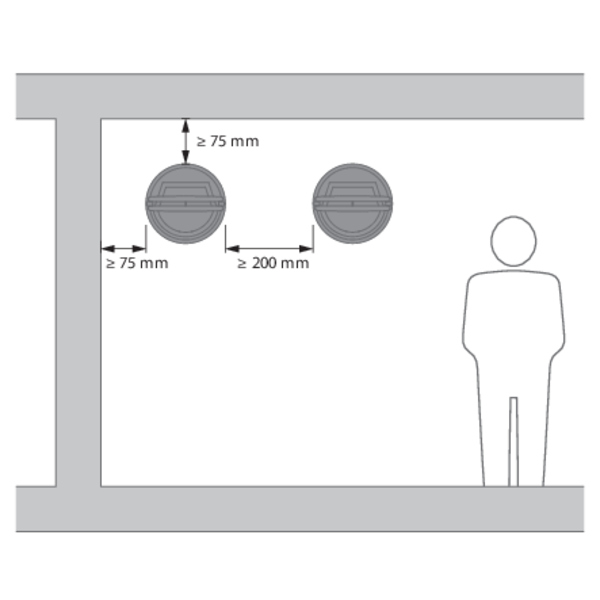

  • Please observe safety distances with respect to other construction elements.

Product-specific remarks

  • The installation must comply with the installation manual and the classification report.
  • The results obtained in standardised supporting structures according to EN 1366-2 also apply to similar supporting structures with a fire resistance, thickness and density equal to or greater than the supporting structure of the test. More information on standardised supporting structures: https://www.rft.eu/en-eu/page/fire-safety/legal-context/european-regulations/standardised-constructions
