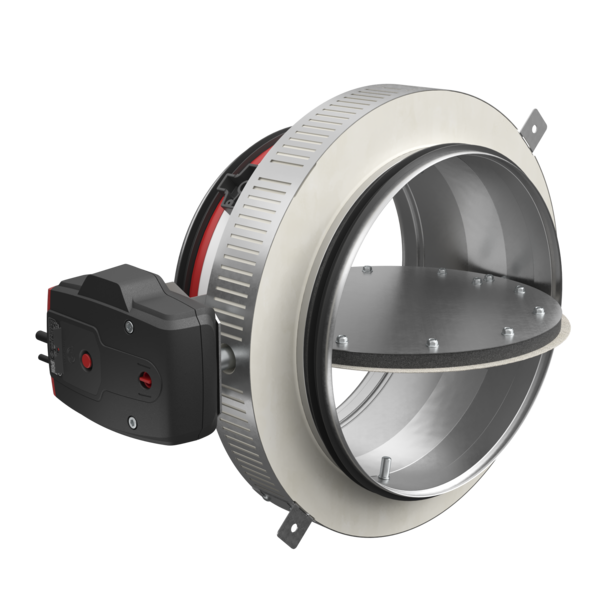

CRS60 - Circular EI60S fire damper for surface and remote mounting

Circular fire damper with a fire resistance of up to 60 minutes. The surface-mounted collar and short damper tunnel guarantee quick and easy mounting, both on-wall and off-wall. Available in diameters 100-630 mm.

benefits

  • Easy to install
  • Optimal free air passage and minimal pressure loss
  • Optimal acoustic performance
  • Air-tightness class ATC 3 according to EN1751 (formerly C)

Features

  • Suitable for surface-mount in rigid wall/floor, light wall and shaft wall (metal stud gypsum plasterboard wall)
  • Minimal distance allowed
  • Suitable for installation remote from the wall or floor
  • Tested according to EN 1366-2 up to 300 Pa
  • Maintenance-free
  • For indoor use
  • Operating temperature: max. 50°C

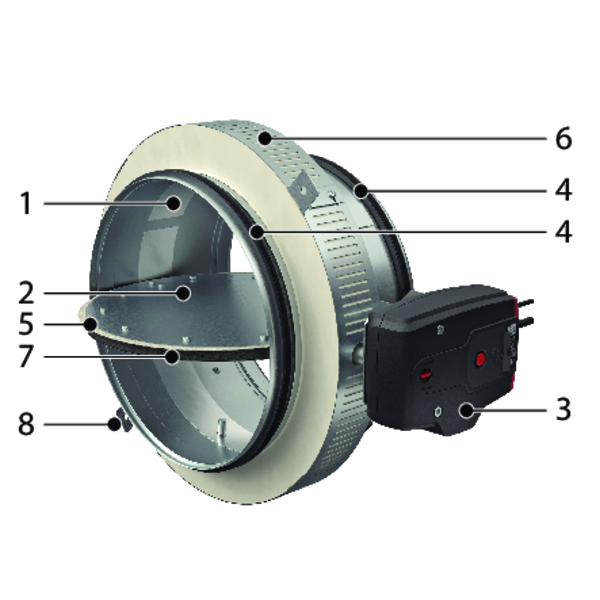

Components

Components
  1. Casing in galvanised steel
  2. Damper blade
  3. Operating mechanism
  4. Rubber sealing ring
  5. Sealing ring for damper blade
  6. Collar
  7. Intumescent strip
  8. Fixation plate
