CRS60 - Dimensions

Range and dimensions

ØDn [mm]	100	125	150	160	180	200	250	300	315	355
ØDn [mm]	400	450	500	560	630

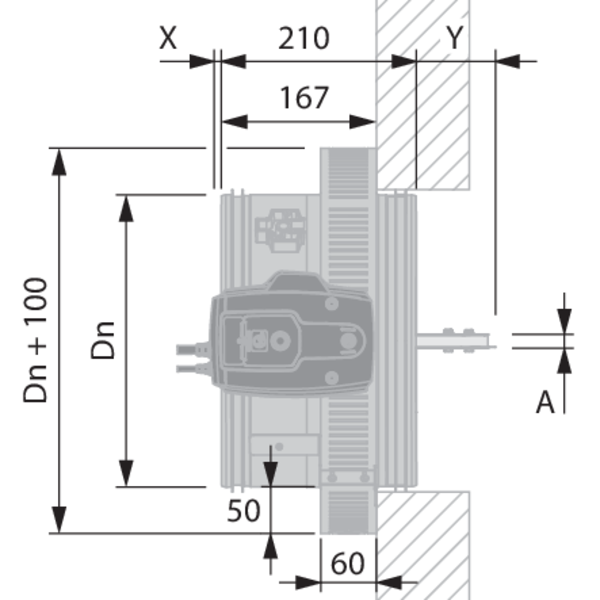

• Exceeding blade: X = on the mechanism side, Y = on the wall side

ØDn [mm]	100	125	150	160	180	200	250	300	315	355	400	450	500	560	630
X	-	-	-	-	-	-	-	14	23	43	66	91	116	146	181
Y	-	-	-	10	18	30	55	78	88	108	130	155	180	210	245
A	15	15	15	15	15	15	15	15	15	27	27	27	27	27	27

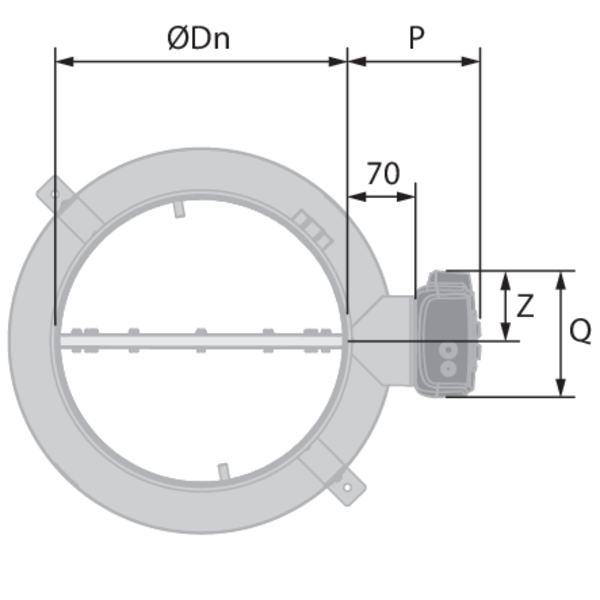

• CRS60 + ONE L

	ONE	BFNT	BFLT
P	141	134.8	130
Q	136	98	80
Z	60.8	49	40
